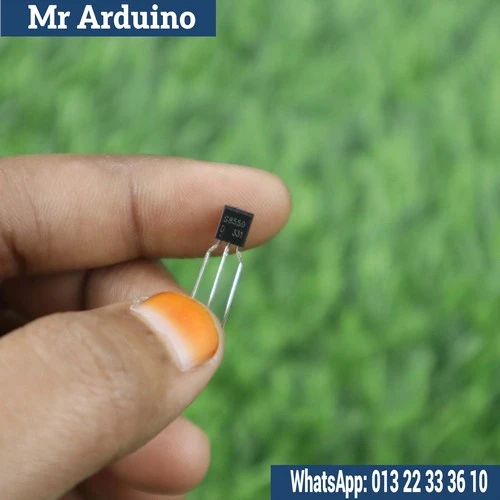

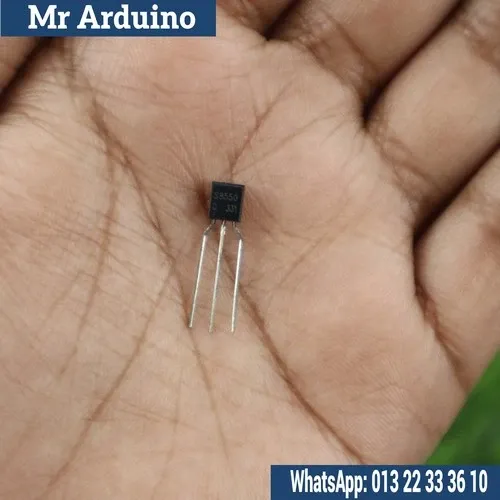

The S8550 is a PNP (Positive-Negative-Positive) bipolar junction transistor (BJT) commonly used in switching and amplification applications. It features a standard power rating and is suitable for low to medium power applications. The S8550 is often employed in audio circuits, signal amplification, and switching circuits for low voltage electronic designs. Its compact TO-92 package makes it easy to integrate into various electronic systems.

Key Features:

• Type: PNP Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (Vceo): 30V

• Maximum Collector Current (Ic): 1A

• Power Dissipation: 0.5W

• Current Gain (hFE): 110 to 800 (depending on the current)

• Package Type: TO-92 (through-hole, easy for breadboarding or PCB mounting)

• Applications: Used in general-purpose switching and amplification circuits

• Transition Frequency (ft): 100MHz, making it suitable for audio and signal processing

• Operating Temperature Range: -55°C to +150°C

How It Works:

The S8550 transistor operates by allowing current to flow between the collector and emitter when a small voltage is applied to the base. In a PNP configuration, when the base is at a lower potential than the emitter, the transistor turns on, allowing current to flow from the emitter to the collector. This makes it ideal for use as a switching device in low voltage and moderate current applications or as an amplifier in signal circuits.

Typical Use Cases:

• Audio Amplifiers: Amplifying small audio signals for speakers or other audio equipment

• Switching Circuits: Controlling the flow of current to a device, such as a light or motor, from a microcontroller or logic circuit

• Power Supplies: Used in circuits that require controlled voltage or current regulation

• Signal Processing: For amplifying or processing analog signals

• Low Power Applications: Ideal for systems where only low to moderate current is needed

Limitations:

• Limited Power Handling: Maximum collector current of 1A, which may not be sufficient for high-power applications

• Voltage Rating: Works best for low-voltage applications (max 30V)

• Not Suitable for High-Speed Switching: Higher switching speeds are achievable with other types of transistors like MOSFETs in specific applications

• Thermal Management: Power dissipation should be considered to avoid overheating when driving high current
