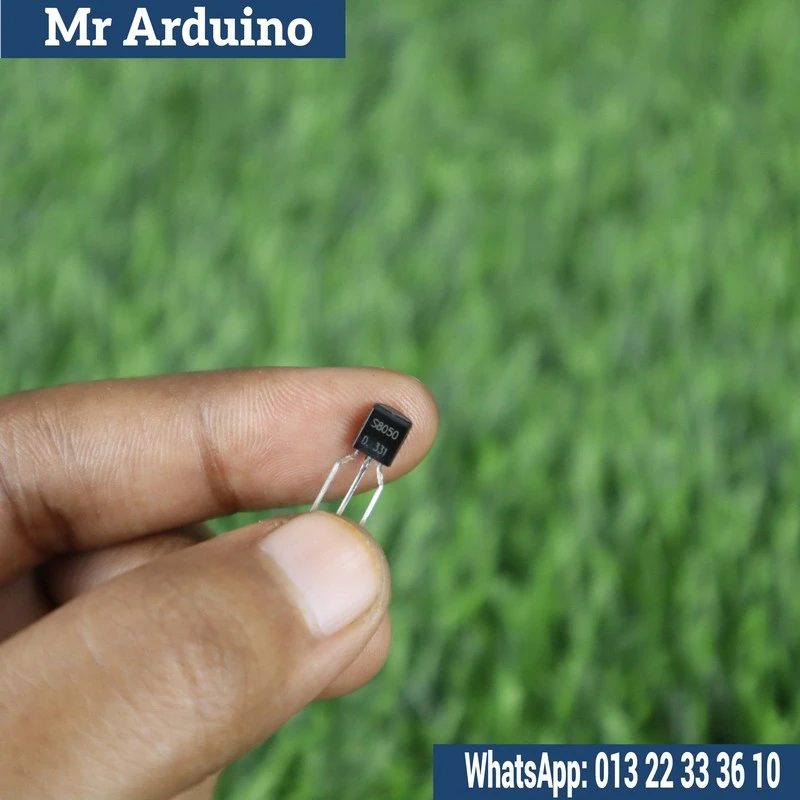

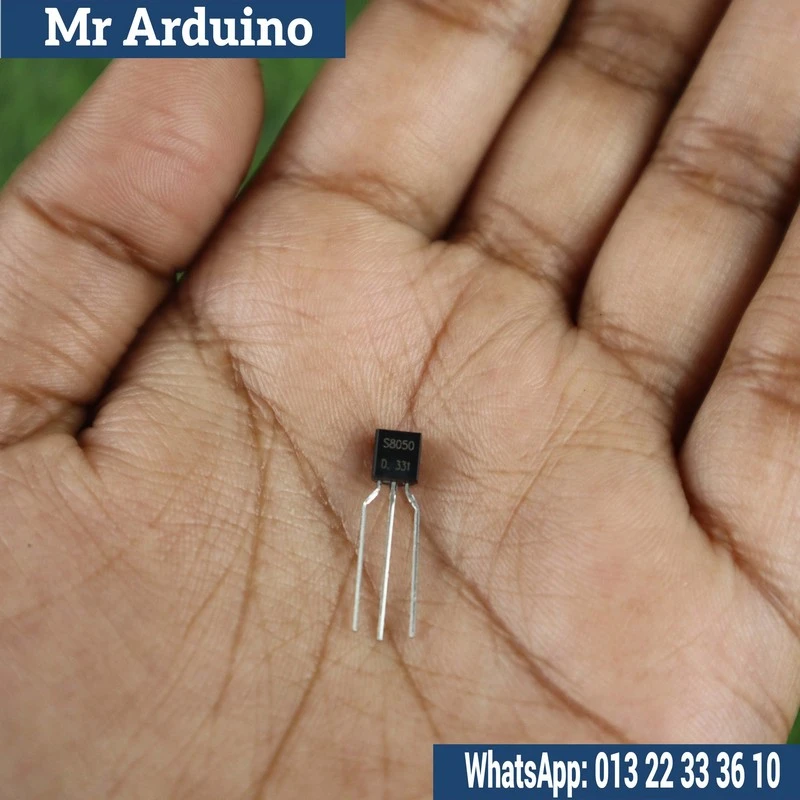

The S8050 is a versatile NPN transistor widely used in general-purpose switching and amplification applications. It features reliable performance, making it a popular choice for use in various electronic circuits, such as signal amplification, switching, and small electronic projects. With its moderate current rating, the S8050 is ideal for low to medium-power applications.

The S8050 transistor is commonly used in audio amplifiers, voltage regulation, and signal processing circuits, offering a balance between performance, size, and cost-effectiveness.

How It Works:
As an NPN transistor, the S8050 functions by allowing a small current to flow into the base to control a larger current flowing between the collector and emitter. This allows it to work as a switch (turning on/off) or as an amplifier (increasing signal strength). The transistor is ideal for switching low-power devices or amplifying small signals.

Specifications:

• Type: NPN Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (Vce): 40V

• Maximum Collector Current (Ic): 1A

• Power Dissipation (Ptot): 500mW

• DC Current Gain (hFE): 100 to 300 (depending on the specific model)

• Package Type: TO-92 (standard through-hole package)

• Operating Temperature Range: -55°C to +150°C

• Base-Emitter Voltage (Vbe): 5V (typical for switching applications)

• Collector-Emitter Saturation Voltage (Vce(sat)): 0.3V (at 100mA)

Features:

• General-Purpose Use: Ideal for both switching and amplification applications in low-power circuits.

• Compact TO-92 Package: Small size for easy integration into various electronic designs and projects.

• Moderate Current Rating: Suitable for use in small electronic devices and components.

• High Gain: Offers a good current gain for efficient amplification in signal processing circuits.

• Affordable and Reliable: Excellent for low-cost applications requiring basic amplification or switching.

Applications:

• Switching Circuits: For driving small loads, such as LEDs or small motors.

• Amplification: Commonly used in audio and radio frequency amplifiers.

• Signal Processing: For small signal amplification in communication devices or sensors.

• Transistor-Based Circuits: Works well in logic circuits, oscillators, and pulse circuits.

• Power Regulation: Used in voltage regulation or power management systems.

Limitations:

• Current Limitation: The S8050 can handle only up to 1A of collector current; higher currents would require a different transistor with higher current ratings.

• Low Power Dissipation: It is not suitable for high-power applications due to the relatively low power dissipation capacity (500mW).

• Not for High-Frequency Applications: May not perform well in high-speed or high-frequency switching applications.
