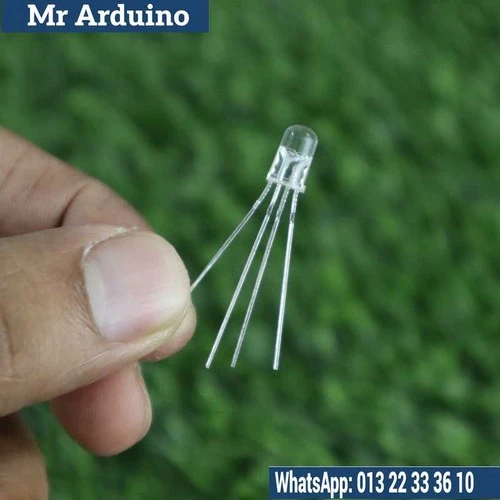

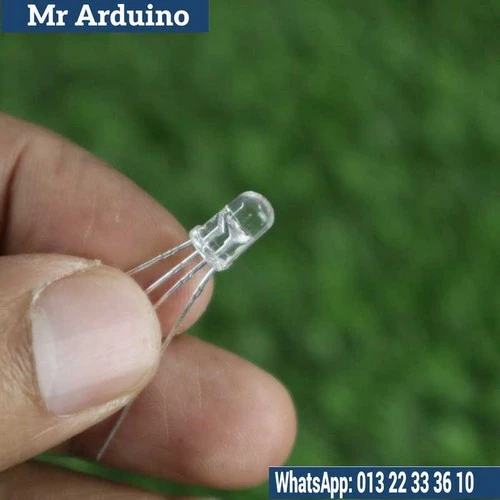

The RGB LED 4 Pin is a color-changing light-emitting diode (LED) designed to produce a wide range of colors by mixing Red, Green, and Blue light. The 4-pin configuration allows for individual control of each color channel (Red, Green, and Blue), giving you full control over the LED's color output. This makes it ideal for applications like decorative lighting, mood lighting, DIY projects, and electronics where customizable colors and visual effects are needed.

The RGB LED 4 Pin is commonly used in Arduino projects, LED strips, home lighting systems, stage lighting, and electronic displays. By adjusting the voltage applied to the different color channels, the user can create millions of colors by blending the three primary colors (Red, Green, and Blue).

Key Features:

• 4 Pin Configuration: The 4 pins are used to control each of the three color channels (Red, Green, and Blue), plus one additional pin for common anode or common cathode configuration.

  • Pin 1: Red color channel.
  • Pin 2: Green color channel.
  • Pin 3: Blue color channel.
  • Pin 4: Common anode (for positive common) or common cathode (for negative common), depending on the LED type.

• Wide Range of Colors: By adjusting the intensity of the red, green, and blue light sources, you can mix and match them to produce millions of colors. Pulse-width modulation (PWM) is commonly used to control brightness and color intensity for each channel.

• Low Power Consumption: RGB LEDs are energy-efficient and consume very little power compared to traditional lighting sources, making them ideal for battery-powered or energy-saving projects.

• Long Lifespan: RGB LEDs have a long operational lifespan, typically lasting thousands of hours with proper usage, making them a durable and cost-effective lighting solution for various applications.

• Versatile Applications: These LEDs are widely used in mood lighting, displays, signage, backlighting, electronic projects, DIY lighting systems, automotive lighting, and more.

How It Works: The RGB LED 4 Pin works by controlling the intensity of each color channel (Red, Green, and Blue) individually. By adjusting the brightness of each channel using a PWM signal, the colors are mixed to create a desired effect.

1. Red, Green, and Blue Channels: Each of the 3 pins (for Red, Green, and Blue) controls a different color channel. By changing the voltage or duty cycle applied to each pin, you control the brightness of each color, which is combined to form a desired color.

   • For example:
     • Full Red: Maximum voltage on the Red pin, no voltage on the Green and Blue pins.
     • Full Green: Maximum voltage on the Green pin, no voltage on the Red and Blue pins.
     • Full Blue: Maximum voltage on the Blue pin, no voltage on the Red and Green pins.
     • Mixing Red, Green, and Blue at varying intensities produces other colors (e.g., Yellow, Cyan, Magenta, and White).

2. Common Anode vs. Common Cathode: RGB LEDs are available in common anode or common cathode versions:

   • Common Anode: The fourth pin is connected to the positive supply (typically VCC), and you control the individual color channels by applying different voltages to the Red, Green, and Blue pins.
   • Common Cathode: The fourth pin is connected to the ground, and the color channels are controlled by applying positive voltages to the Red, Green, and Blue pins.

   The configuration must be matched with the circuit and components you're using for proper functionality.

3. PWM Control: To create varying colors and brightness levels, PWM is used to rapidly switch the current on and off, adjusting the perceived intensity of each color. By controlling the duty cycle of each PWM signal, you can blend colors more effectively and produce smooth transitions in lighting.

Limitations:

• Power Requirements: RGB LEDs may require more power than standard single-color LEDs, especially when all three channels are at maximum brightness. Proper current limiting and voltage regulation are essential to prevent overheating or damage to the LED.
• External Control Needed: To fully control the color output, the RGB LED usually needs to be connected to a microcontroller (such as Arduino) or a driver circuit that can handle the PWM signals required for color mixing.
• Common Configuration: Make sure to use the correct configuration (common anode or common cathode) that matches your project setup to avoid incorrect wiring or malfunctioning.

The RGB LED 4 Pin is a versatile and vibrant lighting solution for projects requiring customizable colors. Whether used in artistic displays, ambient lighting, or DIY electronics, it provides an excellent way to achieve rich, dynamic lighting effects that can be tailored to specific needs.
