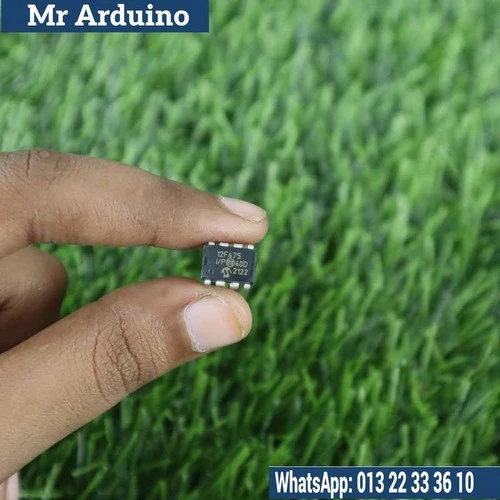

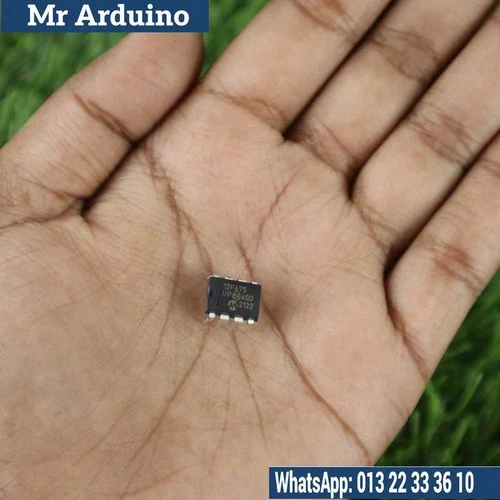

The PIC 16F675 is an 8-bit microcontroller from Microchip Technology, part of the PIC16 series. It is a compact and cost-effective solution for a wide range of embedded systems and small-scale projects that require programmable logic and data processing capabilities. The 16F675 is equipped with a variety of integrated features, including Flash memory, EEPROM, and analog-to-digital conversion (ADC), making it suitable for sensor applications, control systems, communication devices, and automated systems.

It comes with a 14-pin DIP or SOIC package, offering flexibility for integration into both prototyping and production designs. The PIC 16F675 is a low-power, high-performance device that can be used for various applications, from home automation and robotics to IoT devices and sensor interfacing.

Key Features:

• 8-Bit Microcontroller: 8-bit architecture suitable for many low to medium complexity control applications.

• 14 Pins: Offers a compact size, making it suitable for small-scale embedded systems and prototyping.

• Flash Program Memory: 4 KB of Flash memory for storing program code, which can be reprogrammed up to 1 million times.

• EEPROM: Includes 256 bytes of EEPROM for storing non-volatile data.

• RAM: 368 bytes of SRAM for temporary data storage during program execution.

• Analog-to-Digital Converter (ADC): Features a 10-bit ADC with up to 8 channels, making it ideal for interfacing with analog sensors.

• I/O Pins: A total of 6 I/O pins (some of which are multiplexed for other functions like analog inputs or communication).

• Timer: Includes two timers, Timer0 (8-bit) and Timer1 (16-bit), which are useful for time-based operations and delays.

• PWM (Pulse Width Modulation): Built-in PWM capabilities for generating analog-like signals from digital outputs.

• Low Power Consumption: Ideal for battery-operated or low-power applications, with various power-saving modes.

• On-chip Oscillator: 8 MHz internal clock with an option for external clocking, giving flexibility in timing control.

• Integrated Communication: Supports I2C and SPI for serial communication, allowing easy integration with other devices.

• Operating Voltage: Can operate at voltages from 2.0V to 5.5V, making it suitable for a wide range of power supply designs.

Applications:

• Embedded Systems: The PIC 16F675 is perfect for embedded applications such as control systems, data acquisition, and sensor interfacing in products like automated systems, robotics, and smart devices.

• Sensor Interface: Its ADC capabilities make it ideal for sensor applications, including reading values from temperature sensors, light sensors, or other analog sources.

• Communication Devices: Can be used in devices requiring serial communication via SPI or I2C, such as data loggers, communication modules, or IoT devices.

• PWM Generation: Widely used in motor control systems, LED dimming applications, and power regulation systems.

• Consumer Electronics: Ideal for low-power consumer devices that require a small form factor and programmable control.

• Automation: Commonly used in home automation, smart lighting, and other control-based applications.

• Portable Devices: Due to its low power consumption and small size, it's often used in battery-operated systems, including wearable devices or remote sensors.

How It Works: The PIC 16F675 functions as the central processing unit (CPU) for embedded systems, controlling and processing data based on the programmed code. Here’s a simplified explanation of its operation:

1. Code Execution: The PIC 16F675 executes the machine code from its program memory (Flash), processing data, performing calculations, and sending outputs based on input conditions.

2. Sensor Data: The microcontroller reads analog data from sensors using its built-in ADC (Analog-to-Digital Converter), which converts the sensor signals (like temperature, light, etc.) into digital values that can be processed by the CPU.

3. Control Signals: Based on the program instructions, the microcontroller can trigger output actions, such as controlling motors, LEDs, or other electronic devices using its digital I/O pins or generating PWM signals for precise control of devices like motors or dimming lights.

4. Communication: The microcontroller can communicate with other devices or peripherals via SPI or I2C, allowing it to send or receive data, control other devices, or form part of a larger system network.

5. Timer Functions: The built-in timers are used to generate precise time delays or handle time-dependent tasks, such as turning on/off devices after a set time.

6. Power Saving: The PIC 16F675 has various power-saving modes, where it can reduce its activity to extend battery life in low-power applications.

Product Limitations:

• Limited I/O Pins: With only 6 general-purpose I/O pins, the number of devices that can be connected directly is limited, although multiplexing and additional ICs can expand functionality.

• Limited Flash Memory (4KB): The 4KB of Flash memory may be restrictive for larger applications or complex programs, especially when compared to other microcontrollers with larger memory capacities.

• Limited ADC Channels: It has 8 channels for analog inputs, which may not be enough for some applications requiring more sensors.

• Basic Processing Power: As an 8-bit microcontroller, it may not be suitable for applications requiring complex calculations or high-speed processing.

Conclusion: The PIC 16F675 is a versatile, low-power microcontroller designed for small to medium complexity applications in embedded systems, sensor interfacing, control devices, and more. With features like Flash memory, EEPROM, analog-to-digital conversion, and PWM generation, it is ideal for a wide variety of electronic projects and products, particularly where space, power efficiency, and cost are crucial considerations.

This microcontroller is perfect for hobbyists, engineers, and developers who require a reliable, flexible platform for creating embedded systems and building custom solutions.
