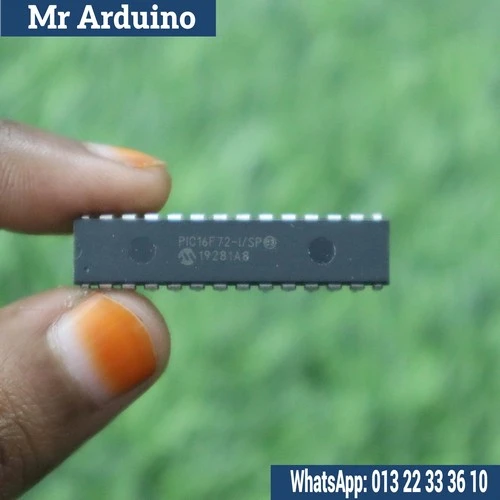

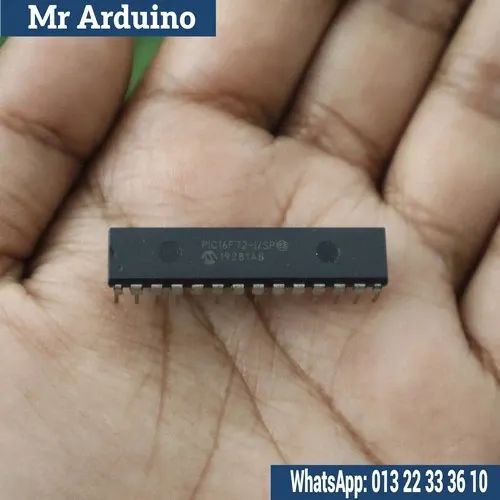

The PIC16F72 is a powerful and flexible 8-bit microcontroller from Microchip Technology, designed for use in a wide range of embedded applications. It offers a solid combination of performance, memory, and peripherals, making it ideal for industrial control, automation, sensor systems, and DIY electronics.

Housed in a 28-pin DIP (Dual Inline Package), the PIC16F72 features 3 timers, 22 I/O pins, a 5-channel 8-bit ADC, and operates at clock speeds up to 20 MHz. With 2K words of Flash memory, 128 bytes of RAM, and EEPROM, it's perfect for medium-complexity embedded systems.

Key Features:

• Core: 8-bit PIC (RISC architecture)

• Program Memory: 2K words Flash

• RAM: 128 bytes

• EEPROM: 0 (no internal EEPROM)

• I/O Pins: 22 GPIOs

• ADC: 5-channel 8-bit analog-to-digital converter

• Timers: 3 timers (TMR0, TMR1, TMR2)

• Operating Frequency: Up to 20 MHz (external oscillator/crystal)

• Voltage Range: 2.0V to 5.5V

• Watchdog Timer, Power-on Reset, and Brown-out Reset

• Package: DIP-28 (Through-hole, easy to prototype with)

How It Works:

The PIC16F72 executes your program instructions stored in its Flash memory. It can read analog signals from sensors through its ADC channels, perform timing operations with its internal timers, and drive outputs like LEDs, motors, and displays through its I/O pins. The microcontroller is programmable via MPLAB X IDE and tools like the PICkit 3 or PICkit 4.

Typical Use Cases:

• Industrial and automation control: Sensor interfacing, relay control, and logic decision-making

• Digital signal reading and processing: Analog sensor input and real-time control

• Home automation: Smart switching, timing, and control systems

• Educational and DIY projects: Excellent for students and hobbyists learning embedded systems

• Consumer electronics: Timing-based control systems, IR remotes, etc.

Limitations:

• No built-in EEPROM memory — not ideal if non-volatile data storage is required

• Lacks built-in UART, SPI, or I2C modules — communication must be done manually (bit-banging)

• Limited Flash and RAM compared to modern MCUs

• Requires external oscillator for full-speed operation

• Needs external programmer (PICkit or similar) for flashing code
