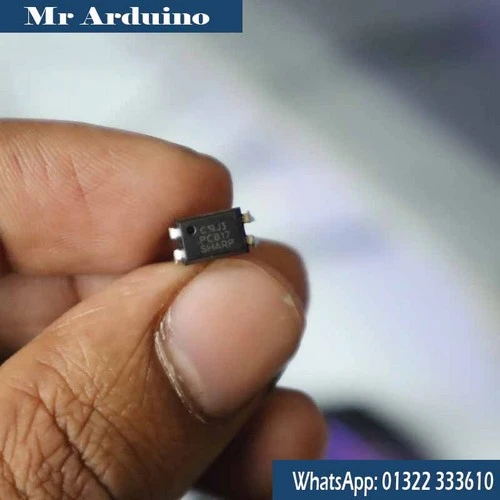

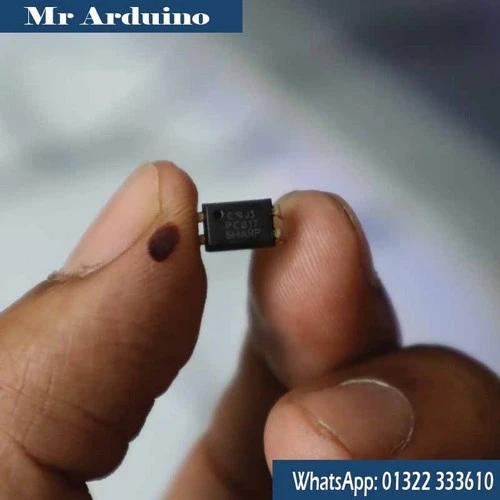

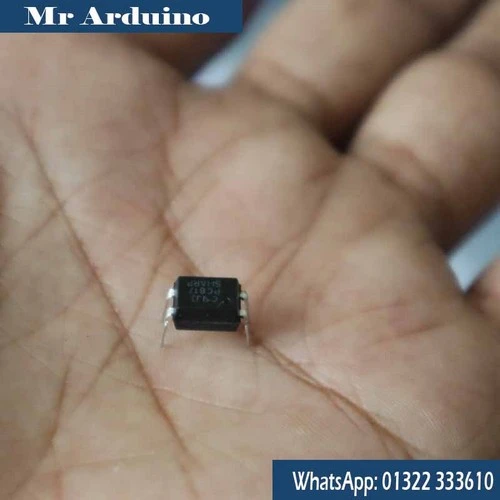

The PC817 is a widely used optocoupler, also known as an optoisolator, designed to provide electrical isolation between input and output circuits. It achieves this by utilizing an internal infrared (IR) LED and a phototransistor, allowing signal transmission without direct electrical connection. This feature is particularly valuable in protecting sensitive components from high voltages or noisy signals.

Pin Configuration

The PC817 optocoupler is housed in a 4-pin Dual In-line Package (DIP), with each pin serving a specific function:

• Pin 1 (Anode): Connects to the positive terminal of the input signal.
• Pin 2 (Cathode): Connects to the negative terminal (ground) of the input signal.
• Pin 3 (Emitter): Connects to the ground of the output circuit.
• Pin 4 (Collector): Outputs the signal to the next stage of the circuit.

This configuration ensures that the input and output are electrically isolated, with the LED and phototransistor facilitating signal coupling through light.

Key Specifications

The PC817 optocoupler boasts several notable specifications:

• Collector-Emitter Voltage (V_CEO): Maximum of 80V.
• Forward Voltage of Input Diode: Typically 1.25V.
• Maximum Collector Current (I_C): 50mA.
• Current Transfer Ratio (CTR): Ranges from 50% to 600%, indicating the efficiency of signal transfer from input to output.
• Isolation Voltage: Provides 5,000 VRMS isolation between input and output, ensuring robust protection against high voltages.
• Operating Temperature Range: -30°C to +100°C, suitable for various environmental conditions.
• Rise and Fall Time: Both are typically 18μs, indicating the speed of the optocoupler's response to input signal changes.

These specifications make the PC817 suitable for a wide range of applications, from simple signal isolation to complex industrial systems.

Working Principle

The operation of the PC817 is straightforward:

1. Input Side: When a voltage is applied across the anode (Pin 1) and cathode (Pin 2), the internal IR LED emits light proportional to the input signal.
2. Output Side: The emitted light activates the phototransistor between the collector (Pin 4) and emitter (Pin 3), allowing current to flow in the output circuit.

This mechanism ensures that the input signal controls the output without any direct electrical connection, providing effective isolation.

Applications

The PC817 optocoupler is versatile and finds use in various applications:

• Microcontroller Interfacing: Isolates microcontrollers from high-voltage circuits, protecting sensitive components.
• Switching Power Supplies: Provides feedback while maintaining isolation between high and low voltage sections.
• Signal Isolation: Separates different sections of a system to prevent ground loops and reduce noise interference.
• Industrial Automation: Ensures safe signal transmission between high-power equipment and control units.
• Consumer Electronics: Used in devices like televisions and home appliances for safe interfacing between different circuit sections.

Its ability to provide reliable isolation makes the PC817 an essential component in many electronic designs.

Practical Considerations

When incorporating the PC817 into a circuit, consider the following:

• Current Limiting Resistor: To prevent damage to the internal LED, use an appropriate resistor to limit the input current.
• Load Resistor: On the output side, a pull-up resistor is often required to ensure the output voltage reaches the desired level when the phototransistor is off.
• Temperature Constraints: Ensure the operating environment stays within the specified temperature range to maintain optimal performance.
• Soldering Conditions: During assembly, avoid exposing the optocoupler to temperatures exceeding 260°C to prevent damage.

By adhering to these guidelines, the PC817 can provide effective and reliable isolation in various electronic applications.
