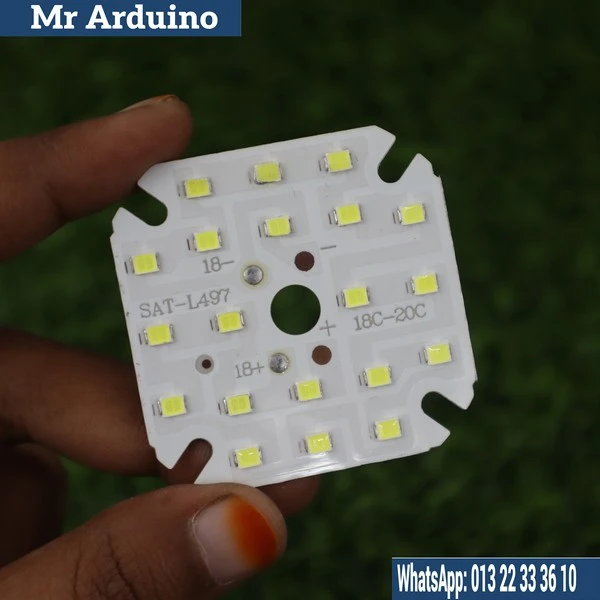

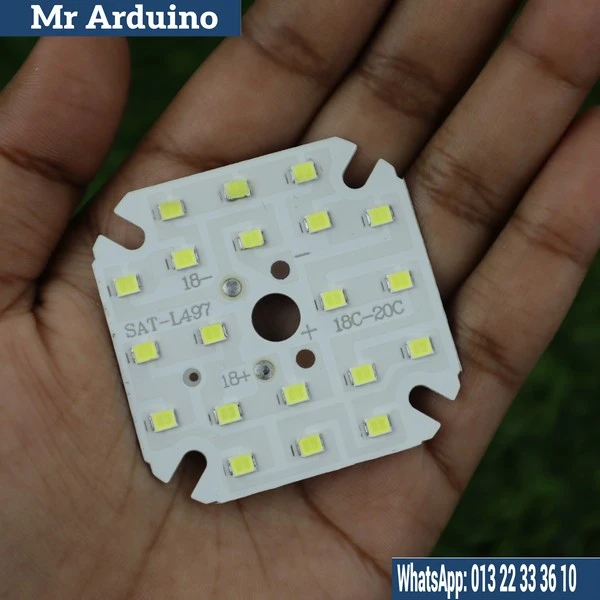

The SAT L497 Panel LED Set includes 40 high-efficiency LED units, designed specifically for lighting panels, display systems, and custom DIY lighting projects. Operating at 100V DC, these LEDs provide bright, consistent illumination with low power consumption and long lifespan. The Dana Type design allows for easy integration into panel lighting systems or retrofit solutions.

Each LED module in this pack contains 18 to 20 chips, offering balanced white light that’s ideal for signage, backlit panels, industrial lighting, or energy-saving retrofit projects.

How It Works:
Each Dana-type LED strip or chip includes a built-in constant current driver, allowing it to operate directly from a 100V DC power source. Simply connect them in parallel or series (depending on configuration), and the panel lights up with uniform brightness. Their high-lumen output makes them ideal for replacing older fluorescent or incandescent lighting in compact spaces.

Specifications:

• Model: SAT L497 18C–20C

• Type: Dana Type Panel LED

• Input Voltage: 100V DC

• Chip Count per Piece: 18–20 high-brightness SMD LEDs

• Color Temperature: Cool White or Neutral White (varies by batch)

• Brightness: Approx. 90–100 lumens per LED piece

• Power Consumption: ~1.5W–2W per unit

• Quantity: 40 pieces per set

• Material: High-quality aluminum base for heat dissipation

• Size: Slim panel format, fits most custom lighting enclosures

• Mounting: Screw or adhesive mount (depending on application)

Applications:

• LED panel lighting

• Signboards and advertising boxes

• DIY light fixtures

• Solar-powered lighting systems

• Fluorescent tube replacements

• Cabinet or under-shelf lighting

Limitations:

• Requires a regulated 100V DC power supply—do not connect directly to AC mains.

• Proper heat sinking or airflow may be required for prolonged use at full brightness.

• Not waterproof—indoor use only, unless placed in a sealed housing.

• Must be wired correctly to avoid damage (observe polarity and voltage).
