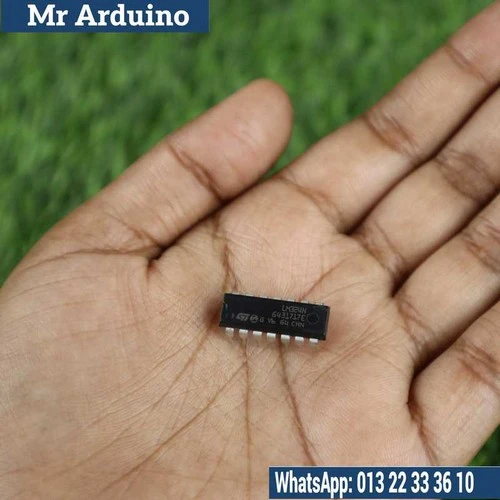

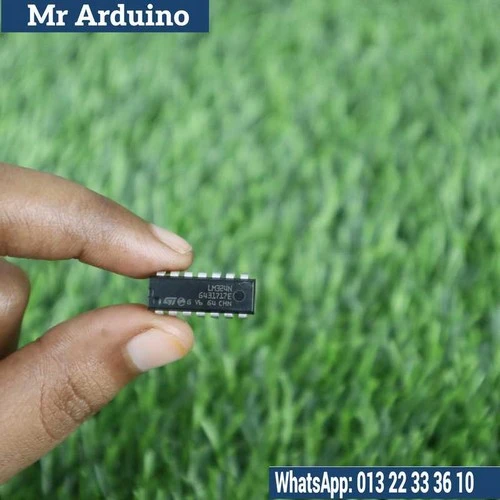

LM324 Quad OP-AMP IC

The LM324 is a versatile quad operational amplifier (op-amp) IC designed for a wide range of applications in signal processing, filtering, and amplification. Featuring four independent, high-gain op-amps, the LM324 is ideal for both battery-operated and general-purpose circuits. Its low power consumption and ability to operate over a wide voltage range make it a popular choice for engineers and hobbyists alike.

Key Features:

Quad Configuration: Contains four independent op-amps in a single package, allowing for multiple amplification tasks within one IC.
Wide Supply Voltage Range: Operates from a single supply voltage of 3V to 32V or dual supplies of ±1.5V to ±16V, offering flexibility in various applications.
Low Power Consumption: Designed for low quiescent current, making it suitable for battery-powered devices.
High Gain Bandwidth: Typical gain bandwidth product of 1 MHz, allowing for effective signal processing.
Input Common Mode Voltage Range: Includes ground level, enabling versatile signal input options.

Specifications

Number of Amplifiers: 4
Supply Voltage Range: 3V to 32V (single supply), ±1.5V to ±16V (dual supply)
Input Offset Voltage: Typically 2 mV
Output Swing Voltage: Typically 1.5V from the positive and negative supply rails (for a 10kΩ load)
Gain Bandwidth Product: 1 MHz
Package Types: Available in 14-DIP, SOIC, and other formats
