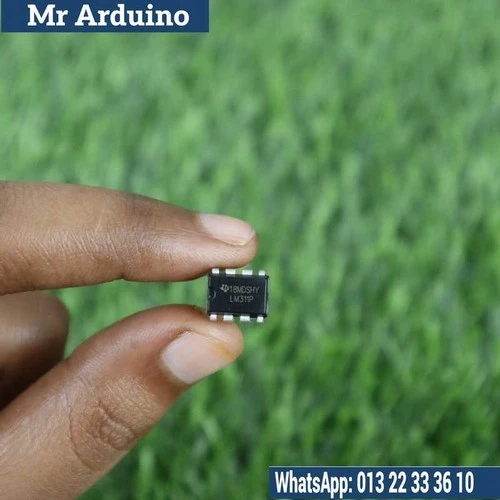

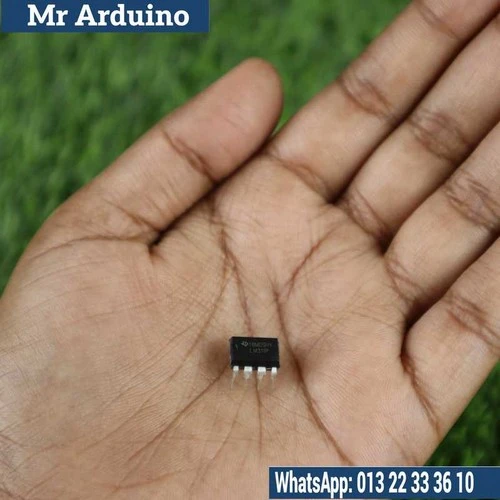

LM311 Differential Comparator IC

The LM311 is a versatile and high-speed differential comparator IC designed for use in a variety of applications, including zero-crossing detection, voltage level sensing, and analog-to-digital conversion. This powerful comparator features a single input stage with differential voltage sensing, allowing it to compare two voltages and output a high or low signal based on the comparison.

Key Features:

Single Supply Operation: Can operate from a single supply voltage of 5V to 30V, making it suitable for a wide range of applications.
High-Speed Operation: Fast response time with a propagation delay of approximately 100 ns, enabling quick signal processing.
Open-Collector Output: The open-collector configuration allows for easy interfacing with various logic levels and higher voltage outputs.
Hysteresis Capability: Can be configured with hysteresis for noise immunity and stable switching behavior.
Wide Input Voltage Range: Accepts input voltages from -0.3V to +36V, allowing for flexible design choices.

Specifications

Supply Voltage Range: 5V to 30V
Input Offset Voltage: Typically 2 mV
Propagation Delay: Approximately 100 ns
Input Common Mode Range: From (V- to V+)-2V to V+ - 2V
Output Current: Up to 50 mA
Package Types: Available in 8-DIP, SOIC, and other formats
