L298N BRIDGE DRIVER IC

0 Orders 0 Wish listed

৳115

Qty
Total price:
  ৳115

Detail Description

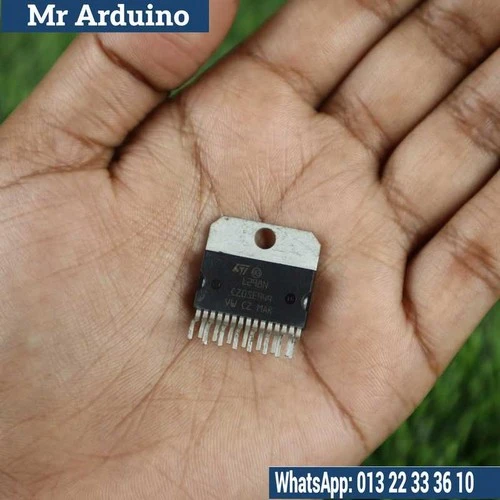

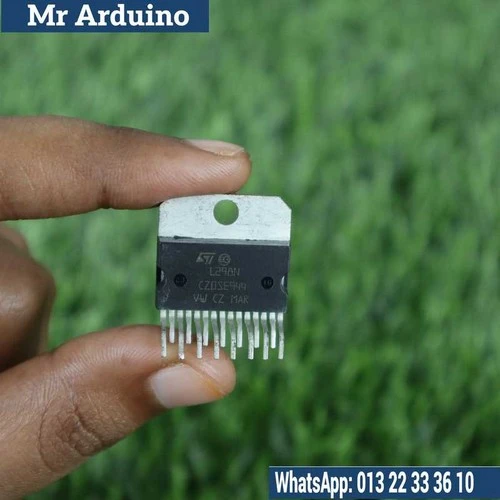

L298N Bridge Driver IC

The L298N Bridge Driver IC is a versatile and robust motor driver designed to control the direction and speed of DC motors and stepper motors. With its dual H-Bridge configuration, the L298N allows for the simultaneous control of two motors, making it an ideal choice for robotics and automation projects. This integrated circuit can handle high voltage and current levels, providing reliable performance in various applications, from small hobby projects to more demanding industrial systems.

Key Features:

  • Dual H-Bridge Configuration: Capable of controlling two DC motors or one stepper motor, offering flexibility in design.

  • High Current Handling: Supports up to 2 A per channel, making it suitable for driving larger motors.

  • Wide Voltage Range: Operates with supply voltages from 5 V to 46 V, allowing for compatibility with various motor types.

  • Built-in Diodes: Integrated flyback diodes protect the circuit from voltage spikes during motor operation.

  • Simple Control Logic: Easy interface with microcontrollers and logic devices via IN1, IN2, IN3, and IN4 control pins.

  • Thermal Shutdown Protection: Ensures reliability by preventing overheating and damage to the IC.

Specifications:

  • IC Type: Dual H-Bridge Motor Driver
  • Supply Voltage Range: 5 V to 46 V
  • Continuous Current: 2 A per channel (4 A peak)
  • Logic Voltage: 5 V
  • Control Pins: IN1, IN2, IN3, IN4 for direction control; ENA and ENB for speed control using PWM
  • Package Type: Multiwatt15, DIP-15, or other variants (depending on manufacturer)
  • Operating Temperature Range: -20°C to +85°C
