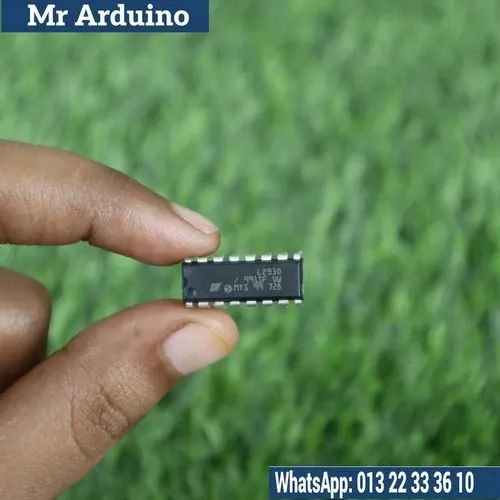

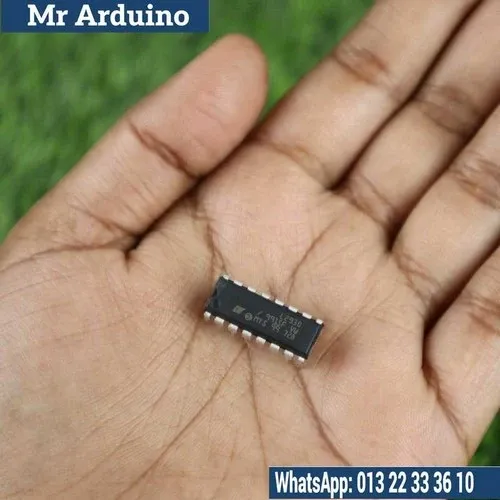

L293D Motor Driver IC

3 Orders 1 Wish listed

৳95

Qty
Total price:
  ৳95

Detail Description

L293D Motor Driver IC

The L293D Motor Driver IC is a popular and reliable dual H-Bridge driver designed for controlling the direction and speed of DC motors and stepper motors. This integrated circuit is particularly well-suited for robotics and automation applications, enabling users to drive two motors simultaneously or a single stepper motor with ease. With built-in protection features and a user-friendly interface, the L293D simplifies motor control while ensuring safe operation.

Key Features:

  • Dual H-Bridge Configuration: Allows control of two DC motors or one stepper motor, providing flexibility for various applications.

  • High Current Capability: Supports up to 600 mA continuous current per channel, with a peak current of 1.2 A, making it suitable for driving small to medium-sized motors.

  • Wide Supply Voltage Range: Operates with supply voltages from 4.5 V to 36 V, accommodating a variety of motor types and specifications.

  • Built-in Diodes: Integrated protection diodes safeguard the circuit against back EMF generated by motors, enhancing reliability.

  • Simple Control Logic: Interfaces easily with microcontrollers and logic devices using control pins for direction and speed control.

  • Thermal Shutdown Protection: Automatically disables the output when the chip exceeds a certain temperature, preventing damage.

Specifications:

  • IC Type: Dual H-Bridge Motor Driver
  • Supply Voltage Range: 4.5 V to 36 V
  • Continuous Current: 600 mA per channel (1.2 A peak)
  • Logic Voltage: 5 V
  • Control Pins: IN1, IN2 for motor A; IN3, IN4 for motor B; ENA and ENB for PWM speed control
  • Package Type: DIP-16 or other variations (depending on manufacturer)
  • Operating Temperature Range: -20°C to +85°C
