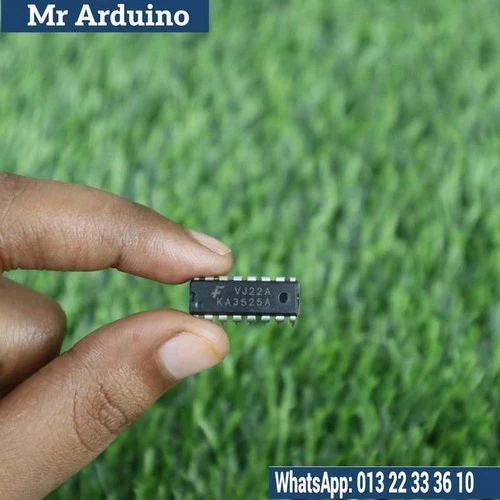

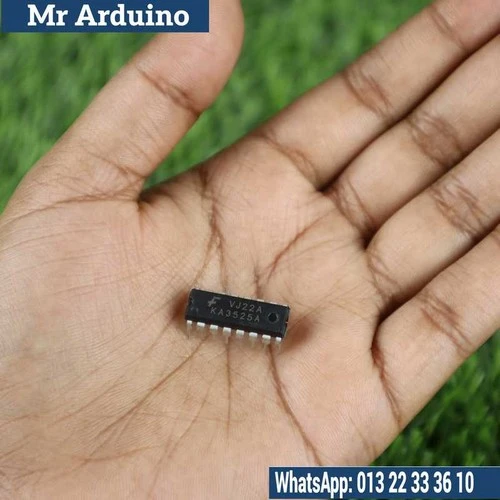

SMPS Controller IC KA3525

12 Orders 0 Wish listed

৳35

Qty

Total price:

৳35

Overview
Reviews

Detail Description

The KA3525A is a versatile integrated circuit designed for power management applications, particularly in switching power supplies and DC-DC converters. It features a wide range of functionalities, including pulse-width modulation (PWM), overcurrent protection, and frequency adjustment, making it suitable for various electronic applications requiring efficient power conversion.

Key Features

PWM Control: Provides precise control over the output voltage and current through adjustable duty cycle.
Wide Supply Voltage Range: Operates from 7V to 40V, accommodating a variety of power supply designs.
Integrated Functions: Includes features such as soft start, dead time control, and overcurrent protection to enhance system reliability.
Frequency Range: Capable of operating at frequencies up to 100kHz, suitable for high-frequency switching applications.
Easy Interface: Designed for ease of use with minimal external components needed for setup.

Specifications

Type: PWM Controller IC
Operating Voltage: 7V to 40V
Output Current: Up to 1A
Oscillator Frequency: Typically adjustable from 1kHz to 100kHz
Temperature Range: -40°C to +85°C
Package Type: Usually available in DIP-16 or SOIC-16 packages
