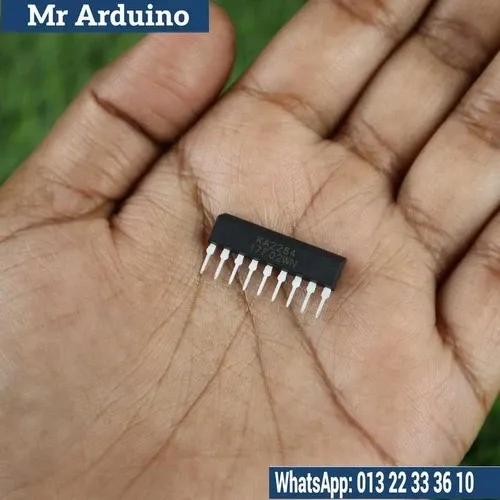

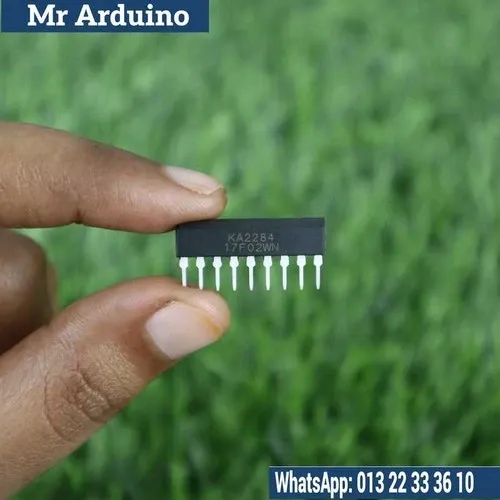

The KA2284 5 Dot LED Level Meter Driver IC is an integrated circuit designed to drive a 5-dot LED level meter. This IC is widely used in audio equipment, power amplifiers, and various electronic systems that require visual representation of signal strength or volume levels. The KA2284 can control up to five LEDs to display the amplitude of an audio signal, making it an essential component for creating audio level indicators.

The IC works by processing the audio input and lighting up the LEDs according to the strength of the input signal. It features an easy-to-use interface with a built-in voltage reference and automatic gain control (AGC), allowing for consistent LED brightness regardless of the input signal's volume. The KA2284 is ideal for DIY audio projects, home audio systems, or professional audio equipment, offering a simple way to display real-time audio signal levels.

Key Features:

• 5 Dot LED Display: Drives up to 5 LEDs to visually represent audio signal levels.

• Voltage Reference Built-In: Comes with a built-in voltage reference to ensure consistent operation and brightness.

• Automatic Gain Control (AGC): Ensures that the LEDs respond consistently to signal levels, even with variations in the input signal's amplitude.

• Easy to Interface: Designed to be easily interfaced with audio circuits, providing a simple solution for audio level indication.

• Low Power Consumption: Operates efficiently, consuming minimal power, which is ideal for battery-powered applications.

• Compact and Durable: The IC is small in size, making it easy to integrate into a variety of audio systems or projects.

• Wide Input Voltage Range: Works with a range of input voltages, typically between 4V to 15V, suitable for various power supply configurations.

• Compact Package: Available in a small 8-pin package, which makes it easy to include in space-constrained designs.

Applications:

• Audio Systems: Used in amplifiers, home stereo systems, and car audio systems to provide a visual representation of the audio signal levels.

• DIY Audio Projects: A popular choice for hobbyists creating custom audio equipment, allowing for easy signal monitoring.

• Professional Audio Equipment: Integrated into mixers, equalizers, and other audio gear to display signal strength and maintain balanced audio output.

• Signal Monitoring: Ideal for use in applications where real-time signal monitoring and level adjustment are important.

• Broadcasting Equipment: Helps in broadcasting stations and sound mixing environments where signal levels need to be monitored at all times.

How It Works: The KA2284 processes the incoming audio signal (typically an AC waveform) and converts it into a series of signals that control a set of 5 LEDs. The brightness of each LED corresponds to the signal amplitude, with each successive LED lighting up as the signal level increases.

The automatic gain control (AGC) feature ensures that the LED brightness remains consistent despite fluctuations in the input signal's strength. This helps to create an accurate and readable representation of the signal level over a wide range of input amplitudes.

The IC operates by detecting the signal's peak levels, and the corresponding LEDs are activated based on the level of the input signal. For example:

• When the audio signal is at its lowest (near zero amplitude), only the first LED will light up.

• As the signal increases, additional LEDs light up in a stepwise fashion, providing a clear visual indication of the signal's strength.

The KA2284 is easy to interface with other audio components such as amplifiers or signal sources, and the simple 8-pin package allows for compact integration into various designs.

Product Limitations:

• Number of LEDs: The KA2284 is designed for a 5-dot LED display. It is not suitable for systems requiring more complex or higher-resolution visual indicators (e.g., more than 5 dots or a full-scale spectrum display).

• Signal Type Compatibility: While it is designed for audio applications, it may not be suitable for other types of signals, such as DC or very low-frequency signals, without additional signal conditioning.

• Output Power Limitation: The IC can drive only small current loads for the LEDs. If a higher current is required for driving larger or brighter LEDs, additional circuitry (e.g., transistors or external drivers) may be necessary.

The KA2284 5 Dot LED Level Meter Driver IC is an efficient and cost-effective solution for adding a visual signal level indicator to audio devices, making it an essential component for audio engineers, DIY enthusiasts, and manufacturers of audio equipment.
