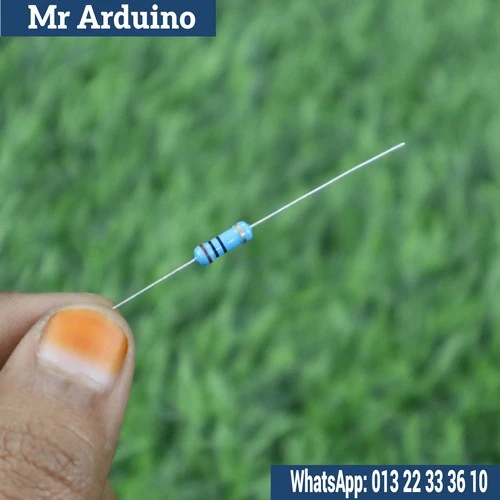

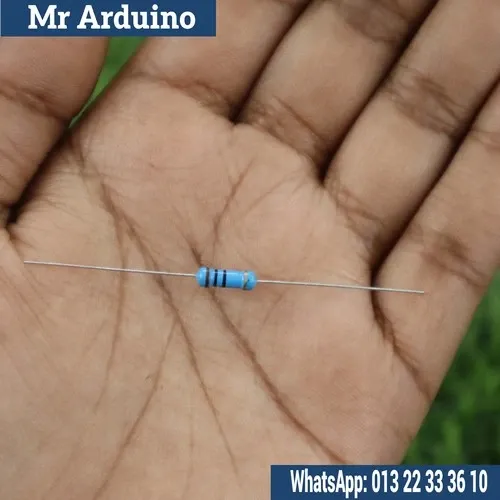

The 10 Ohm 0.5 Watt Resistor is a standard electronic component used to resist the flow of electrical current in a circuit. With a resistance value of 10 Ohms and a power rating of 0.5 Watts, this resistor is ideal for use in low-power applications, such as in voltage dividers, current limiting, and filtering circuits. It’s commonly used in a wide range of electronic devices, including hobbyist projects, educational experiments, and industrial applications.

How It Works:

1. Resistive Material: The resistor is made from a resistive material (usually carbon film, metal oxide, or wire-wound) that impedes the flow of electrical current. When current flows through the resistor, energy is dissipated as heat.
2. Resistance Value: The 10 Ohm resistance means that the resistor will oppose the flow of electrical current, creating a voltage drop across it in accordance with Ohm's Law (V = I * R). For a 10 Ohm resistor, for every 1 Ampere of current, the voltage drop will be 10 Volts.
3. Power Rating: The 0.5 Watt power rating indicates the maximum amount of power the resistor can safely dissipate without overheating. If the power exceeds this value, the resistor could overheat, potentially leading to failure. It’s important to ensure that the resistor is not subjected to excessive current that would cause it to exceed the 0.5W limit.
4. Use in Circuits: Typically, resistors are placed in series or parallel with other components in a circuit to limit current, divide voltage, or protect more sensitive components from excessive electrical flow.

Features:

• 10 Ohm Resistance: This value makes it suitable for current-limiting and voltage-dividing applications in low-power circuits.
• 0.5 Watt Power Rating: With a relatively low power rating, it’s ideal for low-energy circuits and ensures minimal heat dissipation.
• Compact and Reliable: Small in size, it can be easily integrated into tight spaces in a variety of electronic projects.
• High Durability: Built to withstand regular use in general-purpose applications, with a robust construction for everyday electronic work.
• Versatile: Suitable for a wide range of applications, including signal processing, filtering, and current-limiting tasks in hobby electronics, repair work, and prototype development.

Limitations:

• Low Power Rating: The 0.5W power rating means this resistor is not suitable for high-power applications. For circuits that require higher power dissipation, a higher-wattage resistor would be necessary.
• Not Ideal for High-Voltage Circuits: In circuits where the voltage and current are high, this resistor may not handle the stress without getting damaged.
• Potential Heat Generation: If the current exceeds its power rating, the resistor could overheat, reducing its lifespan or causing failure.

The 10 Ohm 0.5 Watt Resistor is an essential component for low-power applications, providing precise resistance with minimal heat generation. It’s a staple for electronic enthusiasts and engineers working on small-scale circuits or educational projects.
