CD4511

2 Orders 0 Wish listed

৳40

Qty

Total price:

৳40

Overview
Reviews

Detail Description

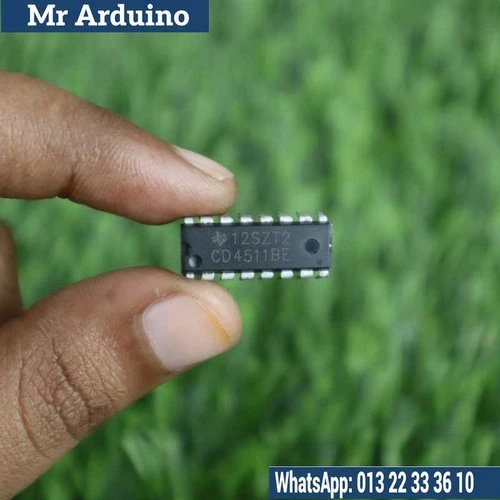

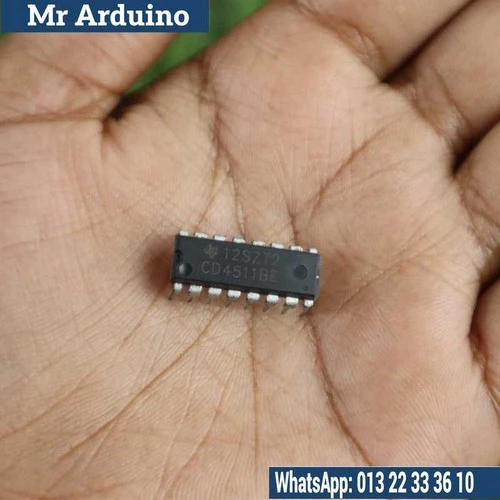

The CD4511 is a CMOS BCD to 7-segment latch/decoder/driver IC used to display numerical digits on common cathode 7-segment displays. It converts Binary Coded Decimal (BCD) input into the corresponding 7-segment output, allowing numbers from 0 to 9 to be displayed clearly.

This IC includes a latch function, lamp test, and blanking control, making it suitable for digital display systems. Due to its low power consumption and wide operating voltage range, the CD4511 is commonly used in counters, digital clocks, measuring instruments, and educational electronics projects.

Key Features:

• IC Type: BCD to 7-segment latch/decoder/driver.

• Display Support: Designed for common cathode 7-segment displays.

• Built-in Latch: Stores input data for stable display output.

• Low Power CMOS Design: Suitable for battery-powered applications.

• Wide Voltage Range: Operates over a broad supply voltage range.

How it Works:

1. BCD Input: Receives 4-bit BCD data representing numbers 0–9.

2. Decoding: Converts BCD input into corresponding 7-segment signals.

3. Latch Operation: Holds the displayed value until new data is applied.

4. Display Driving: Directly drives a common cathode 7-segment display.

Applications:

• Digital counters and displays

• Digital clocks and timers

• Measurement and indicator systems

• Microcontroller display interfaces

• Educational and DIY electronics projects
