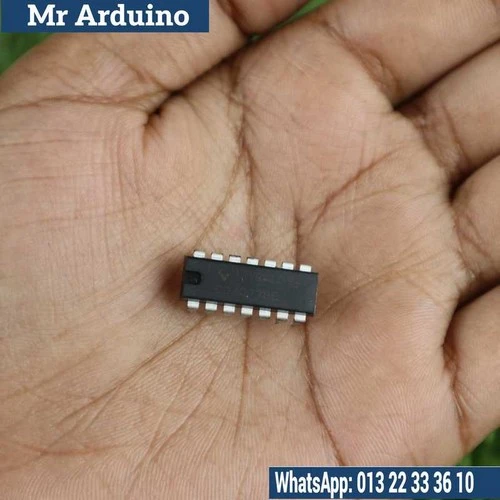

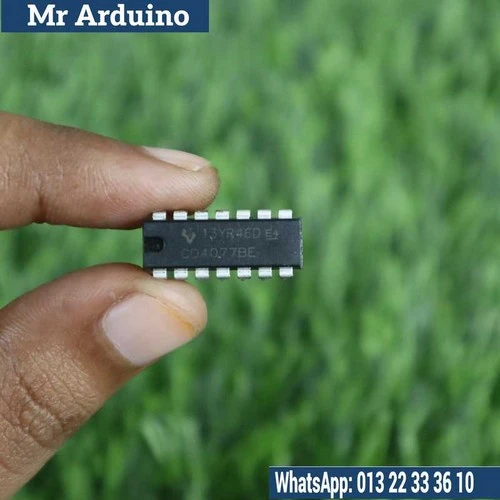

The CD4077 is a dual 2-input XNOR gate IC, a member of the CD4000 series of CMOS logic chips. This IC contains two independent XNOR gates, each with two inputs and one output. An XNOR gate (Exclusive NOR) is a digital logic gate that outputs true (1) when both of its inputs are the same (either both 0 or both 1). Otherwise, it outputs false (0). The CD4077 is commonly used in digital circuits for various logic applications where this type of comparison is needed.

This component operates in a wide voltage range (3V to 18V) and is ideal for low-power applications. The CD4077 is widely used in combination logic circuits, parity checkers, error detection systems, and comparators.

Features:

• Dual 2-input XNOR gates

• Wide voltage operating range: 3V to 18V

• Low power consumption

• High noise immunity

• CMOS technology for lower power usage

• High-speed operation

Applications:

• Digital computing systems

• Parity generators and checkers

• Error detection and correction circuits

• Signal comparison in digital logic systems

How it Works:

• The CD4077 has two separate XNOR gates, each with two inputs.

• The output of the XNOR gate is high (1) when both inputs are equal (either both high or both low).

• If the inputs differ, the output will be low (0).

• This gate is typically used to implement functions where equality comparison of two signals is necessary.

Limitations:

• Not suitable for extremely high-speed applications as it is not designed for high-frequency operation.

• The CD4077 is a standard logic gate IC and does not provide more complex operations found in more modern integrated circuits.

• The IC is voltage sensitive, so it must be operated within the recommended voltage range to avoid damage.

This product is ideal for DIY electronics projects, educational purposes, and general digital circuit applications that require basic logic operations.
