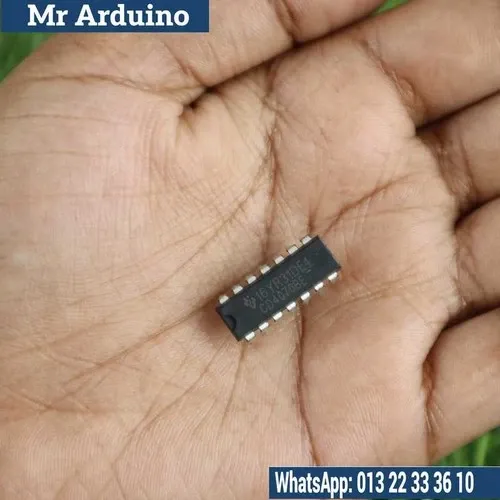

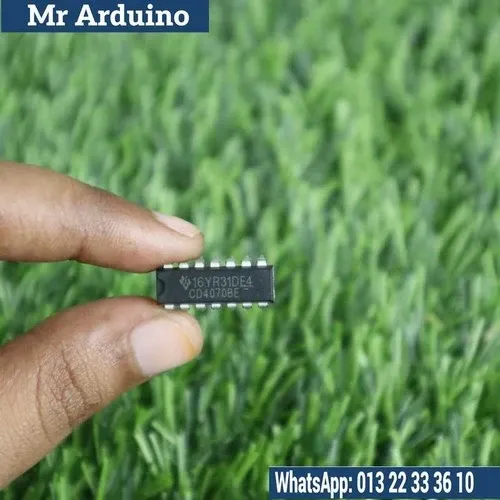

The CD4070 is a dual 2-input XOR gate IC from the CD4000 series of CMOS logic devices. The XOR (Exclusive OR) gate is a fundamental digital logic gate that outputs true (1) when the number of high inputs is odd. Specifically, the CD4070 provides two independent XOR gates, each with two inputs and one output. The gate will output high (1) when exactly one of the inputs is high (1), and low (0) when both inputs are either both low (0) or both high (1).

The CD4070 operates in a wide voltage range (3V to 18V), which makes it suitable for various digital applications where XOR logic is required. It is a versatile component commonly used in arithmetic operations, binary adders, and error-checking circuits.

Features:

• Dual 2-input XOR gates

• Wide voltage operating range: 3V to 18V

• Low power consumption

• High noise immunity

• CMOS technology for efficient power usage

• Suitable for both standard and low-power applications

• Reliable performance over a wide range of temperatures

Applications:

• Arithmetic and logic circuits, including binary adders and half adders

• Parity generation and error detection systems

• Digital communication systems

• Signal processing applications

• General-purpose digital logic circuits

How it Works:

• The CD4070 consists of two XOR gates, each with two inputs.

• The XOR gate will output high (1) only when the inputs are different. If both inputs are the same (both 0 or both 1), the output will be low (0).

• XOR gates are commonly used in digital electronics to perform addition, subtraction, and comparisons of binary values.

For example:

• Input A = 0, Input B = 0 → Output = 0

• Input A = 0, Input B = 1 → Output = 1

• Input A = 1, Input B = 0 → Output = 1

• Input A = 1, Input B = 1 → Output = 0

Limitations:

• The CD4070 is not suited for extremely high-frequency applications, as its speed may be limited compared to other modern logic gate ICs.

• This IC operates within a specified voltage range, and exceeding this range can lead to malfunction or permanent damage to the circuit.

• While it offers good performance for many standard logic tasks, it may not be ideal for high-precision or high-speed applications where other specialized gates might be required.

The CD4070 is a reliable, cost-effective solution for implementing XOR logic in a wide variety of digital systems and projects, making it a popular choice for hobbyists, students, and engineers working with logic circuits.
