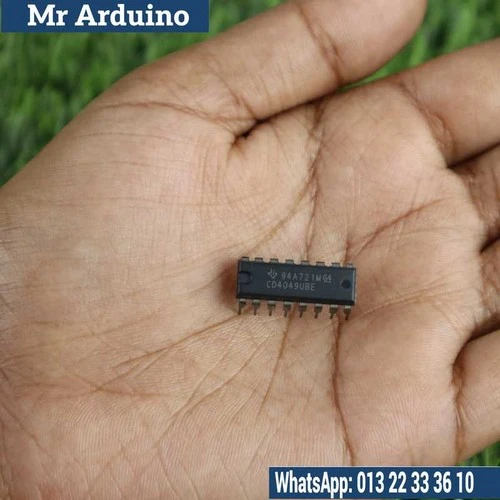

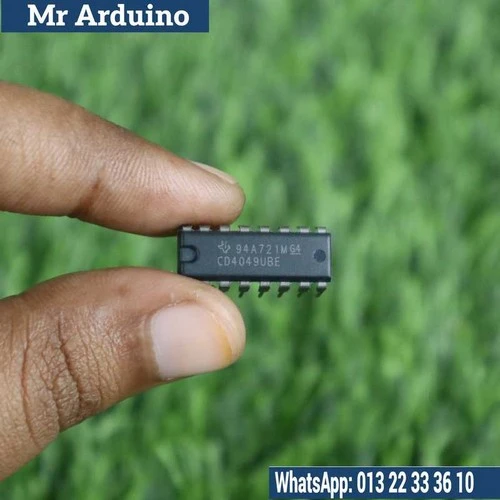

The CD4049 is a CMOS hex inverter/buffer IC commonly used for signal inversion, buffering, and logic level conversion in digital electronic circuits. It contains six independent NOT gates that can also function as buffers, making it a versatile IC for digital signal processing.
One of the key advantages of the CD4049 is its ability to accept higher input voltages than its supply voltage, which allows it to be used as a logic level shifter between different voltage systems. Due to its low power consumption and reliable CMOS design, the CD4049 is widely used in embedded systems, microcontroller interfacing, and educational electronics projects.
Key Features:
• IC Type: CMOS hex inverter and buffer.
• Logic Function: Inverts digital input signals (NOT operation).
• Level Conversion: Suitable for logic level shifting applications.
• Low Power Consumption: Ideal for battery-powered circuits.
• Multiple Gates: Contains six independent inverter/buffer stages.
How it Works:
1. Signal Input: Receives digital logic signals at the input pins.
2. Inversion: Outputs the logical opposite of the input signal.
3. Buffering: Strengthens signals for driving other logic circuits.
4. Level Matching: Helps interface different voltage logic systems safely.
Applications:
• Digital logic and signal inversion circuits
• Logic level shifting and interfacing
• Microcontroller and embedded systems
• Signal buffering and conditioning
• Educational and DIY electronics projects
