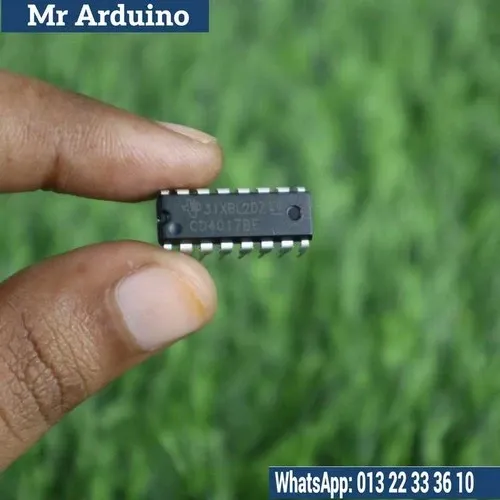

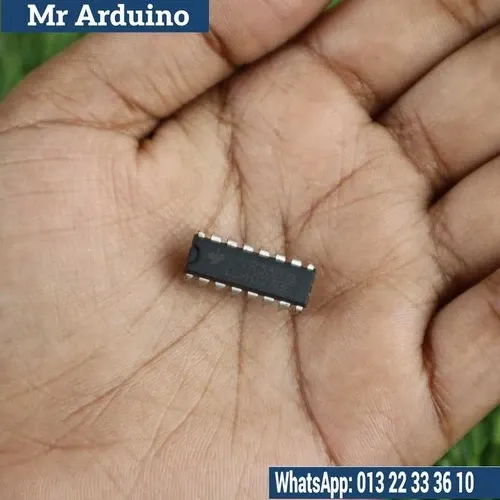

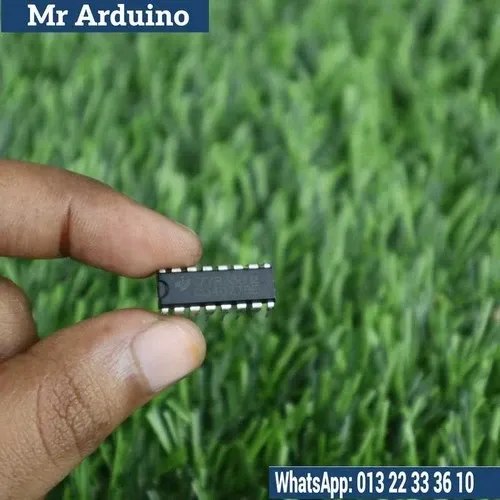

The CD4017 is a 5-stage CMOS decade counter IC, also known as a "Johnson decade counter," capable of counting from 0 to 9 (a total of 10 states). It features a series of ten output pins (Q0-Q9), where each pin represents a specific state in the counting sequence. As the IC receives clock pulses, it increments the count by one with each pulse, cycling through the states in a binary sequence. The CD4017 is widely used in various timing, counting, and sequencing applications, such as digital clocks, event counters, and sequential switching.

How It Works:

1. Clock Input: The CD4017 operates by receiving clock pulses on its input (pin 14). With each pulse, the IC advances the counter by one step. The clock input can be driven by an external oscillator or signal generator.

2. Counting Sequence: The IC counts in a sequence from 0 to 9 (0, 1, 2, 3, 4, 5, 6, 7, 8, 9). For each state, one of the output pins (Q0 to Q9) goes HIGH (1), while the others remain LOW (0). The output corresponds to the current state of the counter.

   • When the IC is powered on, Q0 is initially HIGH (representing 0).
   • On each clock pulse, the IC shifts to the next output (Q1 for 1, Q2 for 2, and so on), until it reaches Q9 (representing 9).
   • After reaching Q9, the next clock pulse resets the output to Q0 (representing 0), continuing the cycle.

3. Decade Counter: The CD4017 is called a "decade counter" because it counts in a sequence of 10 steps (0-9). It is particularly useful in applications where a cycle of 10 states is needed, such as in timers, clocks, or frequency division circuits.

4. Reset Pin: The CD4017 has a reset pin (pin 15) that allows the counter to be reset to the 0 state manually, regardless of the current count. When the reset pin is triggered, all outputs are set LOW, and the counter returns to the initial state.

5. Enable Pin: The CD4017 also features an enable pin (pin 13), which can be used to enable or disable the counting function. If the enable pin is held LOW, the counter will stop counting, and the outputs will remain fixed at their current state.

Features:

• 5-Stage Counter: The CD4017 contains 5 stages, allowing it to count from 0 to 9, providing a complete decade of counting.
• CMOS Technology: Being based on CMOS (Complementary Metal-Oxide-Semiconductor) technology, the IC offers low power consumption and high noise immunity, making it suitable for battery-operated devices.
• Ten Output Pins: The IC features 10 output pins (Q0-Q9), each representing one step in the counting sequence. The corresponding output is HIGH while the rest remain LOW.
• Reset Functionality: The reset pin allows the counter to be manually reset to its initial state (0), making it flexible for various applications.
• Flexible Clock Input: The clock input allows for external clock signals, making it suitable for a wide range of timing and sequencing applications.
• Low Power Consumption: Due to its CMOS design, the CD4017 consumes very little power, making it ideal for portable and low-energy applications.

Applications:

• Digital Clocks: The CD4017 can be used to create digital clocks that count seconds, minutes, or hours, by dividing the clock pulse appropriately.
• Event Counting: It is used for counting events, such as how many times a sensor is triggered or an input is received.
• Sequencers and Timers: The IC is often used in sequencers for controlling the sequence of events, lighting, or even controlling a stepper motor.
• Frequency Division: The IC can divide the frequency of a clock signal for applications that need slower clock signals or specific timing sequences.
• LED Displays: It can be used to drive a 7-segment LED display for counting purposes, such as in counters or scoreboards.
• Signal Routing: Can be used in applications where signals need to be routed or switched based on a counting sequence.

Limitations:

• Limited to Counting 0-9: The CD4017 is a decade counter and counts from 0 to 9. For counting beyond 9, you would need additional logic or another counter IC.
• Clock Dependency: The counting speed and accuracy depend on the clock signal fed to the IC. If the clock signal is erratic or too slow, the counter will not function properly.
• Output Power: The CD4017 provides only a small current output from the logic pins, which may not be sufficient to drive large loads directly. Additional transistors or drivers may be required for higher power applications.

The CD4017 Counter IC is a reliable and efficient component for counting applications, offering a simple yet powerful way to implement timing and sequencing functions in digital circuits. Its low power consumption and versatility make it ideal for a wide range of electronic projects.
