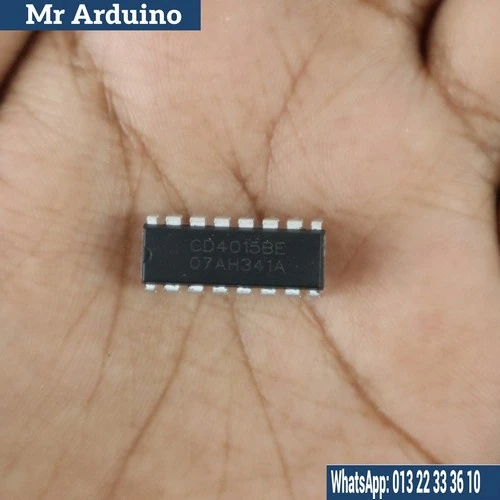

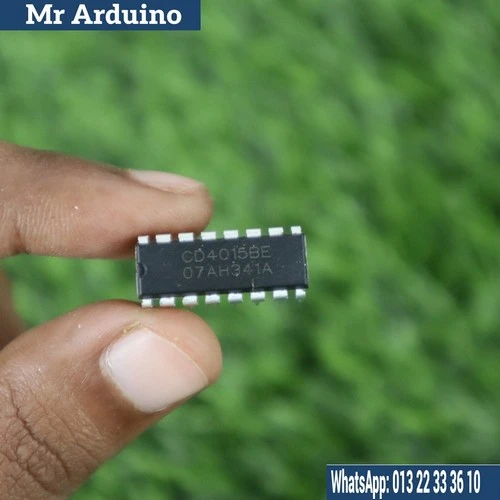

The CD4015 Dual 4-Stage Shift Register is a versatile digital integrated circuit designed for storing and shifting binary data. Featuring two independent 4-bit shift registers, this device is ideal for a range of applications, including data storage, signal processing, and digital communication systems.

Key Features:

• Dual Shift Registers: Contains two separate 4-stage shift registers, allowing simultaneous data handling for enhanced efficiency in your digital circuits.
• Serial Input/Output: Each shift register supports serial data input and output, enabling easy integration into various digital systems.
• Low Power Consumption: Designed for low power operation, making it suitable for battery-powered and energy-efficient applications.
• Wide Supply Voltage Range: Operates within a supply voltage range of 3V to 15V, providing flexibility for different circuit designs.
• TTL Compatible: Compatible with TTL (Transistor-Transistor Logic) levels, ensuring easy integration with other digital components.

Working Principle

The CD4015 operates based on the principle of shifting binary data through its registers. Here’s how it works:

1. Data Input: Data is fed into the shift register via the serial input pin. The data is usually in the form of binary bits (0s and 1s).
2. Clock Signal: The shift operation is controlled by a clock signal. On each clock pulse, the data is shifted one position to the right (or left, depending on configuration).
3. Data Storage: The bits are stored in the register until they are shifted out or replaced with new data. Each register can hold up to 4 bits.
4. Output: The data can be retrieved from the output pins in the same serial format, allowing it to be sent to other components or circuits.

The CD4015 Dual 4-Stage Shift Register is an excellent choice for anyone looking to implement reliable and efficient data handling in their digital designs, making it suitable for both educational projects and professional applications.
