The A1015 is a general-purpose NPN transistor that is widely used in electronic circuits for signal amplification and switching applications. It is commonly used in low-power devices and is a popular choice for audio amplification, small-signal amplification, and digital logic circuits. The A1015 transistor is known for its compact size, affordable price, and reliability.

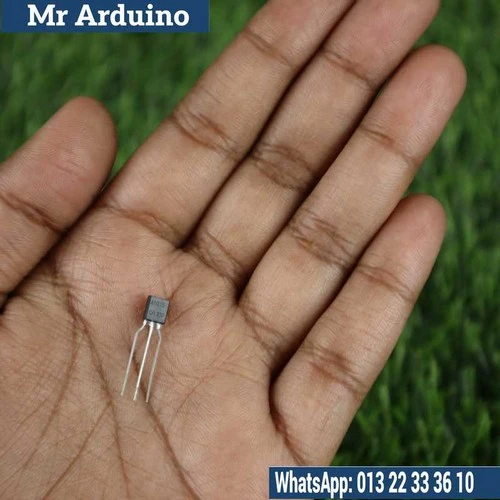

It is housed in a TO-92 package, which is a small, three-lead package that is ideal for use in prototyping and breadboard experiments. The A1015 transistor is used in a wide range of applications such as amplifiers, oscillators, switching circuits, and even in signal processing.

Key Features:

• Type: NPN bipolar junction transistor (BJT)

• Maximum Collector-Emitter Voltage (Vceo): 50V

• Maximum Collector Current (Ic): 150mA

• Power Dissipation (Ptot): 300mW

• Gain (hFE): 110 to 800 (depending on the current)

• Package Type: TO-92

• Frequency Response: Suitable for high-frequency switching and amplification up to a few MHz

• Applications: Ideal for low-power switching, audio amplification, signal processing, and basic electronic circuits

Applications:

1. Signal Amplification: The A1015 is often used in audio circuits and low-frequency amplification to boost weak electrical signals into stronger ones, for example, in microphone preamplifiers or radio receivers.

2. Switching Circuits: This transistor is used in switching applications where a small control signal can turn on or off larger currents in the circuit. For example, it can be used to control motors, lights, or other electronic devices in an on/off fashion.

3. Oscillator Circuits: The A1015 can be used in oscillator circuits, generating a consistent periodic signal, often used in applications like clocks, tone generators, or frequency modulation circuits.

4. Signal Processing: Due to its fast switching capabilities, the A1015 is also used in signal processing tasks where signals need to be manipulated or conditioned.

5. Linear Amplifier Circuits: In audio or low-signal applications, the A1015 transistor works well as a linear amplifier where it helps increase the amplitude of weak analog signals.

6. Prototyping: Given its common use and easy-to-use package, the A1015 is perfect for prototyping, hobbyist projects, and educational purposes in electronics labs.

How It Works: The A1015 NPN transistor functions as a switch or an amplifier depending on the circuit design. In an amplifier configuration, a small input current at the base terminal controls a larger current between the collector and emitter terminals, effectively amplifying the signal. In a switching application, when the base current exceeds a certain threshold, the transistor turns on, allowing current to flow between the collector and emitter, thus acting like a closed switch.

1. Base-Emitter Junction (BE) Forward Bias: When a small current is applied to the base relative to the emitter, the base-emitter junction becomes forward biased, allowing current to flow from the emitter to the collector.

2. Collector-Emitter Current: Once the base current exceeds a certain threshold, it allows a much larger current to flow from the collector to the emitter, depending on the external circuit configuration. This large current flow is used for amplification or to drive external loads like motors or LEDs.

3. Saturation and Cutoff Regions: In switching applications, the transistor is either in the saturation region (fully on, acting as a closed switch) or the cutoff region (fully off, acting as an open switch).

Product Limitations:

• Low Current Handling: The A1015 can handle up to 150mA of collector current, which is relatively low compared to other transistors, limiting its use in high-power applications. It is best suited for low-power circuits.

• Voltage Limitations: The maximum collector-emitter voltage is 50V, which means the A1015 cannot be used in circuits with higher voltages.

• Power Dissipation: The A1015 has a low power dissipation rating of 300mW, meaning it is not suitable for high-power applications where significant heat generation could occur.

Conclusion: The A1015 NPN transistor is an excellent choice for low-power applications in signal amplification, switching circuits, and basic electronics projects. Its affordable price, compact TO-92 package, and reliable performance make it ideal for use in hobbyist projects, prototyping, and low-frequency signal processing. However, for high-power applications requiring more robust performance in terms of voltage or current handling, it may be necessary to use a more powerful transistor.
