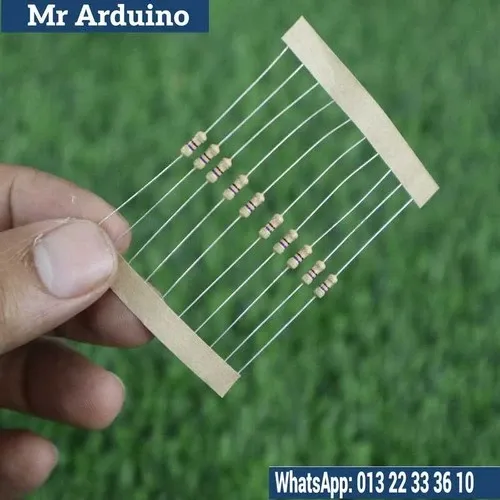

The 82 Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 82 ohms and a power rating of 0.25 watts (quarter-watt). It is commonly used in low-power electronic circuits for applications such as current-limiting, voltage division, and signal processing. With its 0.25W power rating, it is designed to work in circuits where minimal power dissipation is required, ensuring reliable performance without overheating.

The quarter-watt size allows it to be integrated into compact designs such as breadboards, PCBs, and small-scale electronic projects, making it a popular choice among hobbyists and professionals for use in a wide range of applications.

Key Features:

• Resistance Value: 82 ohms, a relatively low resistance that is ideal for applications needing current regulation or voltage drops with higher current.
• Power Rating: 0.25W (quarter-watt), designed for low-power circuits where heat dissipation is minimal and the resistor can operate without risk of damage.
• Tolerance: Typically available with ±5% tolerance, though higher precision ±1% tolerance versions may also be available for critical applications.
• Compact Size: The quarter-watt size makes it suitable for use in small electronics, breadboards, and PCBs, particularly in space-constrained designs.
• Material: Often made from carbon film or metal oxide, providing good stability, durability, and reliable performance over time.

How It Works: The 82 Ohm Resistor Quarter Watt 0.25W operates based on Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 82 ohms value determines the current flow when a given voltage is applied.

For example, applying 5V across the 82 ohm resistor results in the following current flow:

$$I = \frac{V}{R} = \frac{5V}{82Ω} \approx 0.061 \, A = 61 \, mA$$

Thus, with a 5V supply, the current flowing through the 82 ohm resistor would be approximately 61 milliamps (mA).

The 0.25W power rating ensures that the resistor can dissipate up to 0.25 watts of power without excessive heating. The power dissipated can be calculated using the formula:

$$P = I^2 \times R$$

Where P is the power, I is the current, and R is the resistance. For the above example:

$$P = (0.061 \, A)^2 \times 82Ω \approx 0.25W$$

This confirms that the 0.25W rating is suitable for such applications.

Applications:

• Current Limiting: Used in LED circuits and other low-voltage applications to limit the amount of current flowing through the components, preventing damage from excessive current.
• Voltage Dividers: Common in voltage divider circuits to create specific voltage levels required for microcontrollers, sensors, and other devices that need controlled voltages.
• Signal Processing: Employed in signal conditioning circuits, where it helps to filter or attenuate signals to the correct level, such as in audio circuits or sensor interfaces.
• Pulse Circuits: Used in RC (Resistor-Capacitor) circuits to modify time constants for filtering, delay circuits, or signal smoothing applications.
• Power Supply Circuits: Can be used in power regulation circuits, where it helps manage voltage drops to protect sensitive components in low-power supplies.
• Speaker Circuits: Often used to limit current to speakers in audio systems, ensuring the speakers do not receive too much current, which could potentially damage them.

Limitations:

• Low Power Rating: The 0.25W power rating restricts its use to low-power circuits. For higher-power applications, a resistor with a higher power rating (e.g., 0.5W, 1W) should be used.
• Current Handling: The 82 ohms value is more suitable for medium to high-current circuits. For very high-current applications, a resistor with lower resistance and higher power rating is needed to avoid excessive heating.
• Tolerance: The ±5% tolerance means there is a potential variation in the resistance value by 5%, which could affect precision circuits. For applications requiring exact resistance, a precision resistor with ±1% tolerance would be a better choice.

The 82 Ohm Resistor Quarter Watt 0.25W is an ideal component for low-power electronic circuits, current-limiting applications, voltage dividers, and signal conditioning. Its small size and affordable price make it a go-to choice for both DIY projects and professional designs where low resistance and low power dissipation are required.
