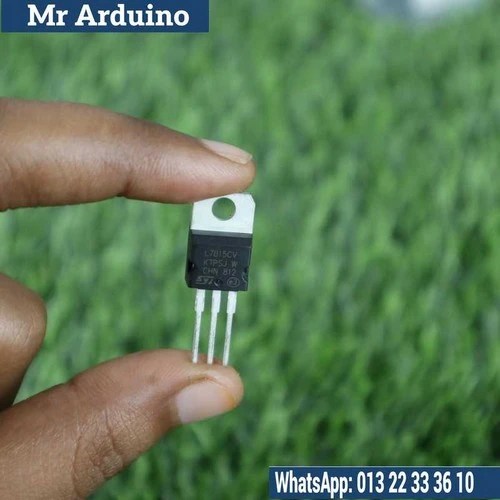

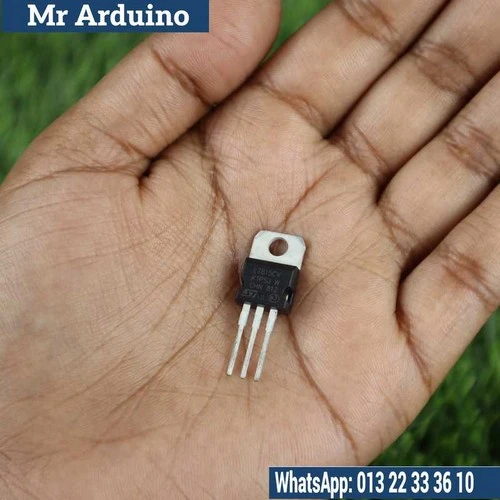

The 7815 is a voltage regulator IC designed to provide a fixed 15V DC output from a higher input voltage. It is part of the 78xx series of linear voltage regulators, which are commonly used in electronic circuits to ensure a stable output voltage. The 7815 is specifically designed to output 15V and is widely used in power supply applications, audio systems, communication systems, and other circuits that require a constant 15V supply.

This three-terminal IC features an integrated heat sink and is housed in a TO-220 package, making it ideal for medium to high-power applications where heat dissipation is important. The 7815 provides excellent voltage regulation and current limiting protection to safeguard the system from overloads.

Key Features:

• Output Voltage: Fixed 15V DC

• Output Current: Up to 1.5A (depending on heat dissipation and input voltage)

• Input Voltage Range: Typically 17V to 35V DC

• Package Type: TO-220

• Dropout Voltage: Typically 2V (minimum input voltage required for stable 15V output)

• Current Limiting: Includes internal overcurrent protection for safer operation

• Thermal Shutdown: Integrated thermal overload protection to prevent damage from excessive heat

• Short Circuit Protection: Built-in short circuit protection to safeguard the IC and connected components

• Regulation Type: Linear regulator for smooth and clean output voltage with minimal ripple

Applications:

1. Power Supply Systems: The 7815 is commonly used in regulated power supplies to provide a constant 15V output to power sensitive electronics and components.

2. Audio Equipment: Used in audio amplifiers, pre-amplifiers, and other audio devices where stable 15V DC is required for proper operation.

3. Communication Systems: Ideal for use in communication equipment that needs a reliable 15V power source, such as radios and transmitters.

4. Arduino and DIY Projects: Often used in Arduino-based projects and hobbyist circuits to power components that require 15V DC.

5. Battery Charging Circuits: Can be used in battery charging circuits to provide a regulated 15V output for charging certain types of batteries.

6. Analog Circuits: Provides a clean 15V supply for analog signal processing, sensors, and other sensitive electronics where voltage stability is crucial.

How It Works: The 7815 voltage regulator works by using a linear voltage regulation method, where the excess voltage from the input is dissipated as heat to maintain a stable 15V output. The basic operation is as follows:

1. Input Voltage: The input voltage must be higher than 15V (typically between 17V and 35V) to allow the regulator to maintain a stable 15V output. The difference between the input voltage and the regulated output voltage is called the dropout voltage.

2. Internal Regulation: Inside the IC, there is a control mechanism that adjusts the voltage drop across the internal components to maintain a constant 15V output despite variations in the input voltage or load conditions.

3. Output Voltage: The regulated 15V output is provided at the output pin, which can then be used to power other components or systems that require a stable 15V source.

4. Heat Dissipation: Since the 7815 is a linear regulator, it generates heat proportional to the difference between the input voltage and the output voltage. Proper heat sinking is important for power dissipation, especially when the input voltage is significantly higher than 15V or when higher currents are drawn.

5. Protection Features: The 7815 includes built-in features like thermal shutdown, current limiting, and short circuit protection to ensure safe operation and to protect both the IC and the connected components from damage.

Product Limitations:

• Efficiency: Since the 7815 is a linear regulator, it is not very efficient compared to switching regulators. The efficiency of the regulator is dependent on the difference between the input and output voltages. For example, if the input voltage is 25V, the regulator must drop 10V as heat, making it less efficient and prone to heating up.

• Heat Dissipation: The 7815 requires proper heat sinking to handle higher currents or large voltage differences. Without proper cooling, the IC may overheat and trigger thermal shutdown.

• Limited Output Voltage Range: The 7815 provides a fixed 15V output. If a different voltage is needed, a different regulator (such as the 7805 for 5V or 7812 for 12V) must be used.

• Dropout Voltage: The 7815 requires a minimum input voltage of approximately 17V to maintain a stable 15V output, so it may not work well when the input voltage is too close to 15V.

Conclusion: The 7815 Voltage Regulator IC is a reliable and widely used component for providing a stable 15V DC output in various electronic applications. With its built-in thermal shutdown, current limiting, and short circuit protection, it offers excellent safety and protection features for both the regulator and the connected components.

It is a great choice for audio equipment, communication systems, DIY projects, and power supply circuits where a stable and clean 15V power source is required. However, it is important to consider its efficiency limitations and ensure that proper heat dissipation measures are in place when using it in high-power applications.
