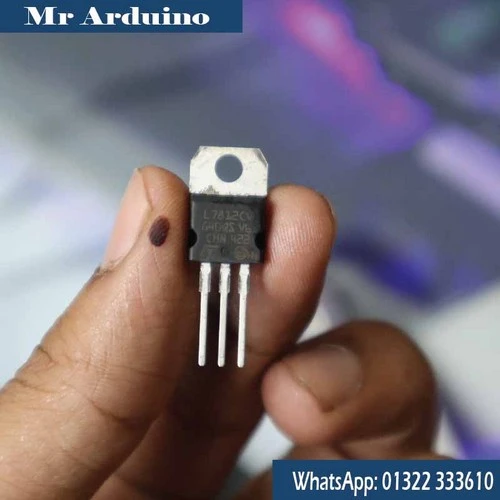

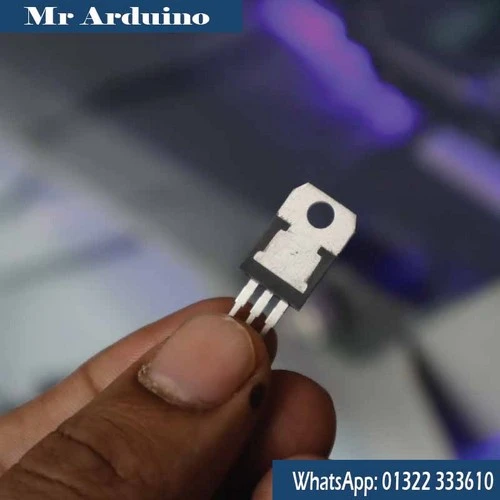

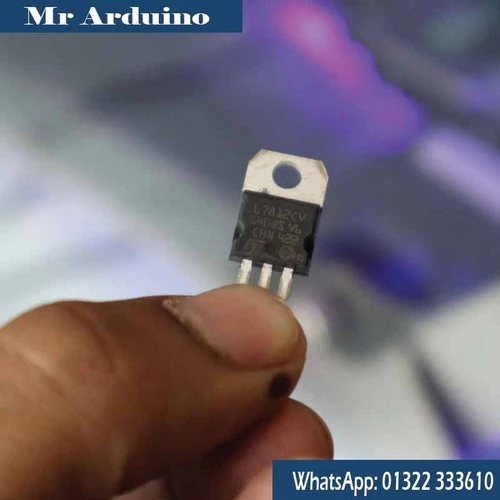

The 7812 voltage regulator is a widely used component in electronic circuits, providing a stable 12V DC output from a higher voltage input. As part of the 78xx series of fixed linear voltage regulators, the "12" denotes its output voltage. This regulator is essential in applications where maintaining a consistent 12V supply is crucial, despite variations in input voltage or load conditions.

Key Features and Specifications

• Output Voltage: 12V DC
• Input Voltage Range: Typically 14.5V to 35V
• Output Current: Up to 1.5A
• Dropout Voltage: Approximately 2V
• Thermal Shutdown and Short-Circuit Protection: Ensures safety under fault conditions

The 7812 regulator maintains a constant 12V output as long as the input voltage is at least 2V higher than the output (i.e., minimum 14V input). This difference is known as the dropout voltage. For optimal performance, it's recommended to keep the input voltage between 14.5V and 35V.

Common Applications

1. Power Supply Design: The 7812 is often used in power supplies to provide a regulated 12V output for various electronic devices.
2. Microcontroller Systems: Ensures a stable voltage for microcontrollers and associated peripherals.
3. Communication Equipment: Provides consistent power to transceivers and other communication modules.
4. Automotive Electronics: Regulates voltage for in-car devices requiring a steady 12V supply.

Practical Considerations

• Heat Dissipation: Given the power dissipation (P = (Vin - Vout) × Iout), the 7812 can generate significant heat, especially with higher input voltages and currents. Adequate heat sinking is necessary to maintain regulator performance and longevity.
• Capacitor Placement: Placing capacitors (typically 0.33µF on the input and 0.1µF on the output) close to the regulator's terminals helps filter input and output noise, ensuring stable operation.
• Current Limiting: While the 7812 can supply up to 1.5A, it's essential to ensure that the input power source can handle the load. Additionally, the regulator has built-in current limiting to protect against excessive loads.

In summary, the 7812 voltage regulator is a reliable and straightforward solution for obtaining a stable 12V DC supply in various electronic applications. Proper attention to input voltage, heat dissipation, and component placement will ensure optimal performance.
