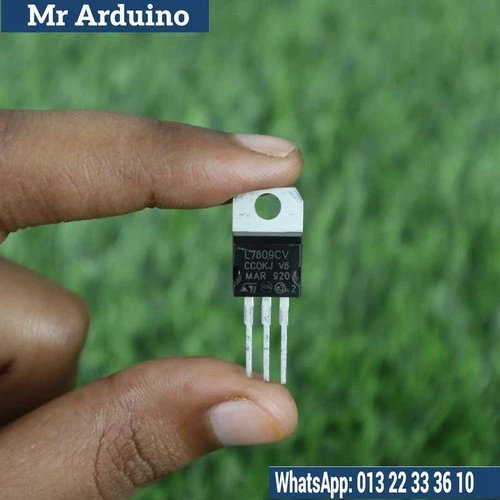

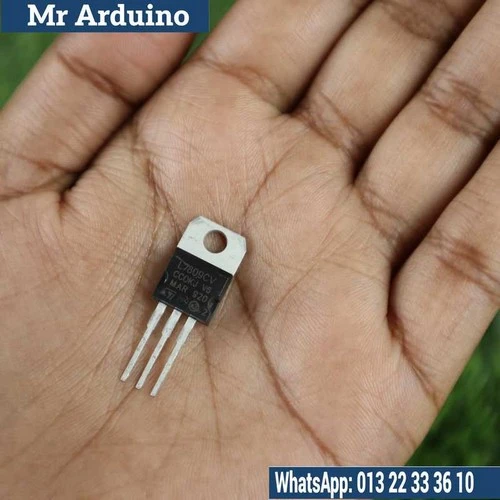

7809 Voltage Regulator

Ensure stable and reliable power supply for your electronic projects with the 7809 Voltage Regulator. This fixed linear voltage regulator provides a consistent output of 9V, making it an ideal choice for powering various circuits, microcontrollers, and other electronic devices that require a stable voltage input.

Key Features:

Fixed Output Voltage: Delivers a steady 9V output, providing reliable power for your applications.
High Input Voltage Range: Accepts input voltages up to 35V, accommodating a wide range of power supply options.
Overload Protection: Includes thermal shutdown and current limiting features to protect your circuit from damage during overload conditions.
Easy to Use: Simple three-pin configuration (Input, Output, Ground) for straightforward integration into your designs.
Compact Size: Designed for minimal space usage, making it suitable for both prototyping and production environments.

Benefits: The 7809 Voltage Regulator is an essential component for ensuring your electronic devices operate smoothly and reliably. Its robust performance and protective features make it a trusted choice for hobbyists and professionals alike.

Target Audience: Electronics engineers, students, educators, and hobbyists engaged in circuit design and development.

Specifications

Type: Fixed Linear Voltage Regulator
Output Voltage: 9V
Input Voltage Range: 7V to 35V
Output Current: Up to 1A (depends on thermal conditions)
Dropout Voltage: Approximately 2V (at 1A load)
Temperature Range: -40°C to +125°C
Package Type: Available in TO-220, TO-263, and other configurations
