7806 Regulator IC

5 Orders 1 Wish listed

৳25

Qty

Total price:

৳25

Overview
Reviews

Detail Description

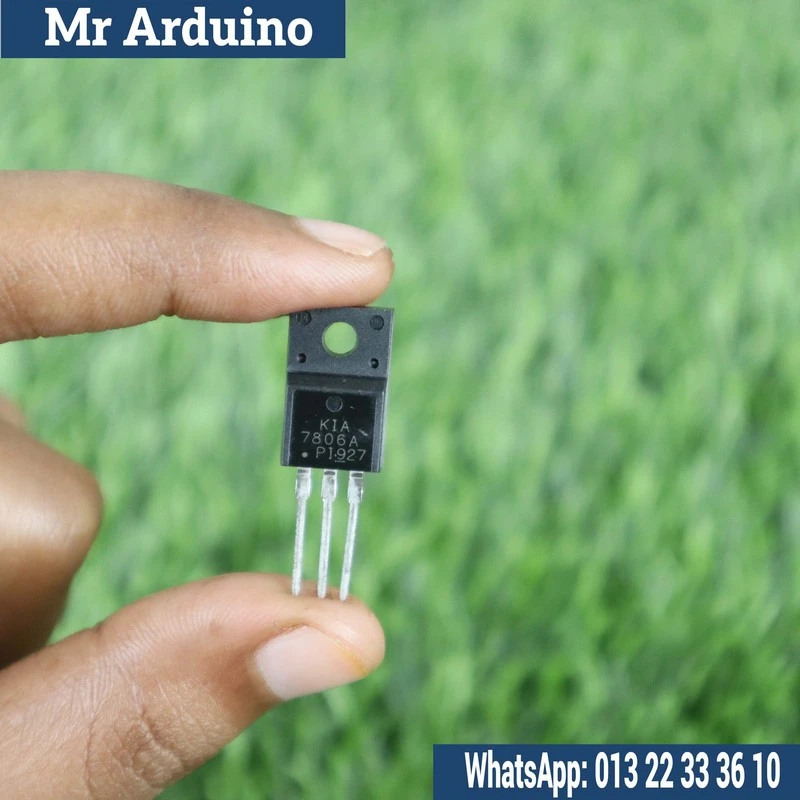

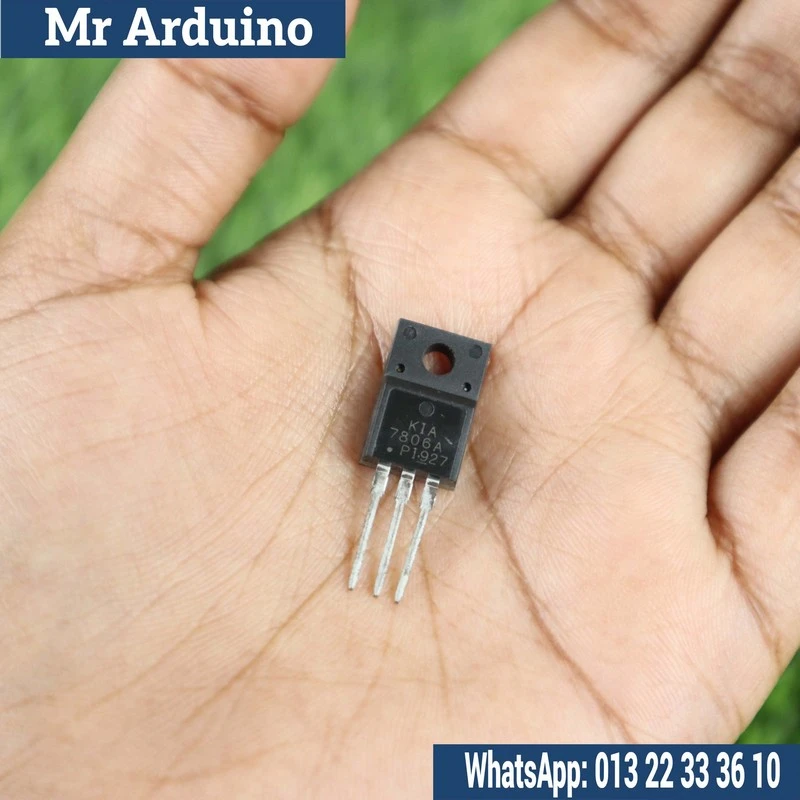

The 7806 is a fixed 6V positive voltage regulator from the reliable 78xx series, used widely in power management for electronic devices. It delivers a consistent 6V output from an input voltage of 8V to 30V, making it ideal for powering sensors, analog circuits, microcontrollers, and other low-voltage components. Housed in a standard TO-220 package, it is easy to use, durable, and comes with built-in protection features for safe operation.

How It Works:
The 7806 takes an unregulated input voltage and outputs a stable 6V, maintaining consistent power supply to your components. It has three pins: Input, Ground, and Output. Simply connect your power source to the input, ground the middle pin, and the output pin will supply a regulated 6V. It’s best used in circuits requiring a clean, constant voltage source with up to 1A current capacity.

Specifications:

Output Voltage: 6V (Fixed)
Output Current: Up to 1A (with adequate heatsink)
Input Voltage Range: 8V to 30V
Dropout Voltage: ~2V
Voltage Regulation Tolerance: ±2%
Package: TO-220
Protections: Overheat protection, short-circuit protection, and safe operating area (SOA) protection

Pin Configuration (TO-220 Package):

Input (Vin)
Ground (GND)
Output (Vout)

Limitations:

Being a linear regulator, it is less efficient compared to switching regulators—especially at high input voltages.
Requires heatsinking if supplying currents near 1A or higher.
Only for step-down voltage applications; input must be higher than 6V.
Not suitable for battery-powered applications where power efficiency is critical.
