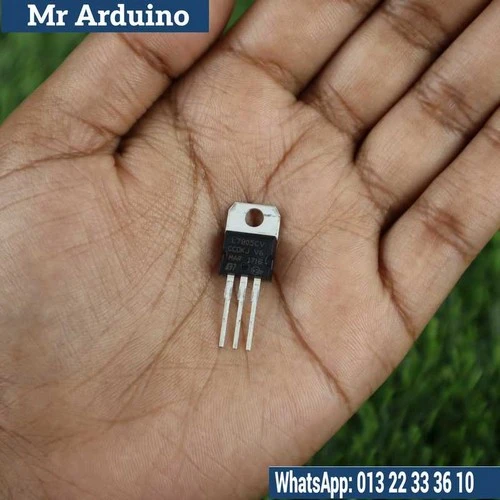

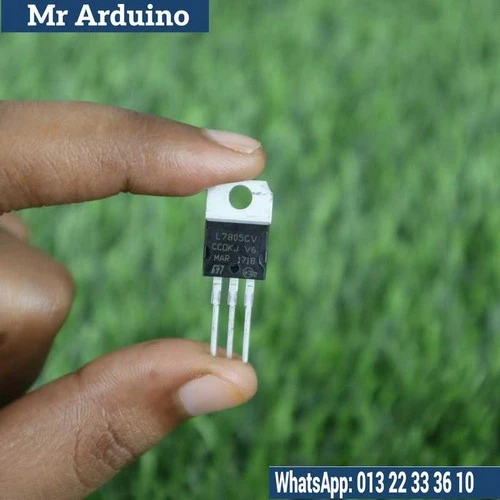

The 7805 is a popular fixed voltage regulator IC that provides a stable 5V DC output from a higher input voltage. It is part of the 78xx series of linear voltage regulators, which are designed to supply a constant voltage regardless of variations in input voltage or load current. The 7805 is specifically designed to output a 5V voltage and is one of the most widely used voltage regulators in a variety of electronic applications.

The 7805 is commonly used in power supply circuits, Arduino projects, microcontroller-based circuits, and many other electronics that require a reliable 5V power source. It comes in a TO-220 package, which is ideal for applications where moderate to high current output is needed. The 7805 provides reliable voltage regulation along with built-in short-circuit protection, overload protection, and thermal shutdown to ensure safe operation.

Key Features:

• Output Voltage: Fixed 5V DC

• Output Current: Typically 1A (depends on heat dissipation and input voltage)

• Input Voltage Range: Typically 7V to 35V DC

• Package Type: TO-220

• Dropout Voltage: Typically 2V (minimum input voltage required for stable 5V output)

• Current Limiting: Built-in overcurrent protection

• Thermal Shutdown: Integrated thermal overload protection to prevent overheating

• Short Circuit Protection: Built-in short circuit protection for safe operation

• Regulation Type: Linear regulator for smooth output voltage with minimal ripple

Applications:

1. Power Supply Circuits: The 7805 is widely used in regulated power supplies to provide a stable 5V output to power low-voltage circuits like logic gates, microcontrollers, sensors, and other electronics.

2. Arduino Projects: One of the most common voltage regulators used in Arduino boards and DIY electronics projects that require a 5V power source.

3. Microcontroller Circuits: Used to provide the stable 5V required by microcontrollers such as Arduino, PIC, or Atmel microcontrollers for powering the circuit and peripherals.

4. Battery-Powered Devices: Provides a stable 5V output to power battery-operated circuits, helping to stabilize power in portable systems.

5. Audio and Communication Equipment: Useful for powering small audio amplifiers, radios, and other communication devices requiring a stable 5V DC supply.

6. Embedded Systems: Ideal for embedded systems and IoT projects where a 5V regulated supply is crucial for consistent performance.

How It Works: The 7805 voltage regulator is a linear regulator that works by using the difference between the input voltage and output voltage to regulate the power. Here’s how it operates:

1. Input Voltage: To operate correctly, the 7805 needs an input voltage that is at least 7V, ideally higher, such as 9V or 12V. The input voltage must always be greater than 5V to maintain the 5V output.

2. Voltage Regulation: The 7805 IC uses a pass transistor internally that adjusts the output to maintain a constant 5V regardless of fluctuations in input voltage (as long as the input voltage stays above the required minimum).

3. Output Voltage: The IC provides a stable 5V output to power other devices. If the input voltage exceeds the necessary value by a large margin, the excess energy is dissipated as heat.

4. Thermal and Protection Features: The 7805 includes thermal shutdown to prevent overheating, short-circuit protection to avoid damage during faults, and overcurrent protection to safeguard the regulator and connected components from excessive current.

5. Dropout Voltage: The 7805 requires a minimum input voltage of approximately 7V (with the typical dropout voltage of around 2V) to maintain the stable 5V output. If the input voltage drops below 7V, the regulator may no longer provide the full 5V output.

Product Limitations:

• Efficiency: Since the 7805 is a linear regulator, it is not very efficient compared to switching regulators. The efficiency decreases as the difference between the input and output voltages increases. For instance, if the input is 12V, the regulator will convert 7V of excess energy into heat.

• Heat Dissipation: The 7805 generates heat during operation, especially when the input voltage is significantly higher than 5V. Proper heat sinking is required when higher currents are drawn (above 500mA) to avoid thermal shutdown.

• Current Limitation: The 7805 is typically rated for 1A output current, but the actual current capability may vary depending on heatsink and input voltage. If the current exceeds this limit, the regulator may enter thermal shutdown or fail.

• Voltage Range: The 7805 is a fixed 5V regulator. It cannot be adjusted to output different voltages. For other voltage requirements, different regulator models such as 7809 or 7812 should be used.

Conclusion: The 7805 Voltage Regulator IC is an essential component for applications requiring a stable and reliable 5V DC output. Its low cost, simple design, and built-in protection features make it ideal for use in a variety of projects, including Arduino-based circuits, battery-powered systems, and audio electronics.

While it’s a great choice for low-to-moderate power applications, it’s important to account for its inefficiency, especially when the input voltage is significantly higher than 5V. Proper heat sinking and ensuring the input voltage stays within the recommended range will help maximize the performance of the 7805.
