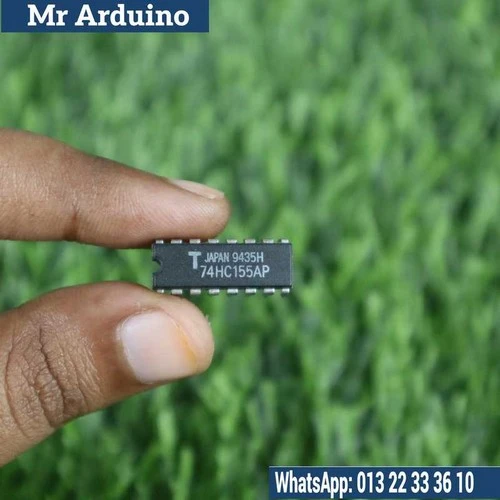

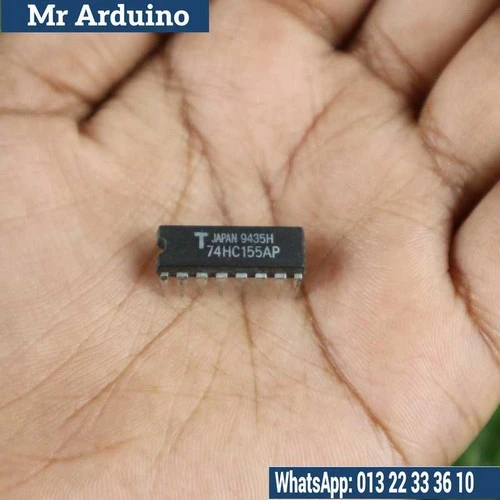

The 74155 is a BCD (Binary Coded Decimal) to Decimal Decoder/Driver IC, widely used in digital electronics for converting a 4-bit BCD input into a corresponding 1-of-10 output. This IC is capable of driving a single-digit 7-segment display or decoding binary values into a corresponding decimal digit output. It essentially takes a BCD input (4 bits), decodes it, and then provides a high output on one of the 10 output pins corresponding to the decimal value of the BCD input.

This IC is commonly used in displays, counters, calculators, and other applications requiring the conversion of BCD numbers into a decimal output format, especially in digital systems and electronic devices like clocks, meters, and displays.

Key Features:

• BCD to Decimal Decoding: Converts 4-bit BCD input into a 1-of-10 output (one of the 10 output pins will be high based on the BCD input).

• Active Low Outputs: The IC's outputs are active low, meaning the output corresponding to the input BCD code will go low, while all other outputs will remain high.

• Drive Capability: The IC can directly drive 7-segment displays or be used as a driver for other digital systems that require a decimal decoding.

• Operating Voltage Range: Typically operates within 4.5V to 5.5V range, ideal for TTL and CMOS logic circuits.

• Low Power Consumption: Designed to consume low power, making it suitable for battery-powered or low-power digital systems.

• Outputs: Provides 10 output pins (one for each decimal digit), all of which are active low. When a certain BCD code is applied, only one output will be active.

• Ease of Use: Provides a straightforward way to interface with 7-segment displays and decimal counting systems without complex logic circuitry.

Applications:

• Digital Clocks: Used in digital clock circuits to decode BCD values and display the corresponding decimal numbers on 7-segment displays.

• Counters and Meters: Used in digital counters, frequency meters, and other digital devices that require BCD to decimal conversion.

• Display Systems: Common in numeric display applications, where a BCD code needs to be displayed on a 7-segment display or LCD.

• Calculators: The 74155 can be used in the construction of calculator circuits to convert input BCD values into a readable decimal format.

• Digital Control Systems: Used in industrial control systems and embedded systems to decode BCD inputs from sensors or counters and display or process the corresponding decimal values.

How It Works: The 74155 BCD to Decimal Decoder/Driver IC works by taking a 4-bit BCD input (representing a number from 0 to 9) and then decoding this binary code into a decimal output. Here's how the IC functions:

1. BCD Input: The 4-bit BCD input (pins A, B, C, D) is provided to the IC. The input represents a decimal number (from 0 to 9) in binary form. Each digit in the BCD format is represented by 4 bits (e.g., 0000 for 0, 0001 for 1, 0010 for 2, etc.).

2. Decoder Logic: The IC uses internal decoding logic to interpret the 4-bit BCD input. Based on the binary input, the IC decodes the corresponding decimal value and activates the correct output pin.

3. Active Low Outputs: Since the IC uses active low outputs, when the correct decimal value is decoded, the corresponding output pin goes low (active), while the other nine output pins stay high (inactive). For example:

   • A BCD input of 0001 (representing 1 in decimal) will cause the second output pin (corresponding to decimal 1) to go low.

   • A BCD input of 0101 (representing 5 in decimal) will cause the sixth output pin (corresponding to decimal 5) to go low.

4. Driving a Display: This decoded output can be used to directly drive 7-segment displays by connecting the active low output pin to the display's input, lighting up the corresponding segment for the correct digit.

5. Power Supply: The 74155 typically operates with a supply voltage of 5V (TTL logic level), but it can work within a voltage range of 4.5V to 5.5V. This makes it compatible with most standard digital circuits.

6. Additional Control Logic: In some cases, additional control logic might be added to enable or disable certain outputs, or to interface with other components in the system, such as multiplexers or other display drivers.

Product Limitations:

• Active Low Outputs: The active low outputs may not be suitable for systems that require active high signals. Additional logic might be needed to invert the outputs if active high outputs are required.

• Limited to BCD Input: This IC only decodes 4-bit BCD inputs, meaning it cannot handle numbers greater than 9 (BCD digits 1010 to 1111 will produce undefined outputs). If a system requires larger numbers, additional decoding or scaling circuits are needed.

• No Display Driver: While the 74155 decodes BCD into a decimal output, it does not drive the 7-segment display directly. Additional drivers or transistors might be needed depending on the load requirements of the display.

Conclusion: The 74155 BCD to Decimal Decoder/Driver IC is a versatile and widely used component in digital electronics, especially for applications that require the conversion of BCD values into a decimal output. It is most commonly used in counter circuits, digital clocks, and displays, providing a straightforward way to interface BCD coded input with decimal display systems like 7-segment displays.

With its 10 active low outputs, it provides a simple solution for applications that require the decoding and displaying of decimal values from binary-coded inputs. While it is suitable for many general-purpose uses, systems requiring more than a 4-bit BCD input or active high outputs may require additional logic for proper integration.
