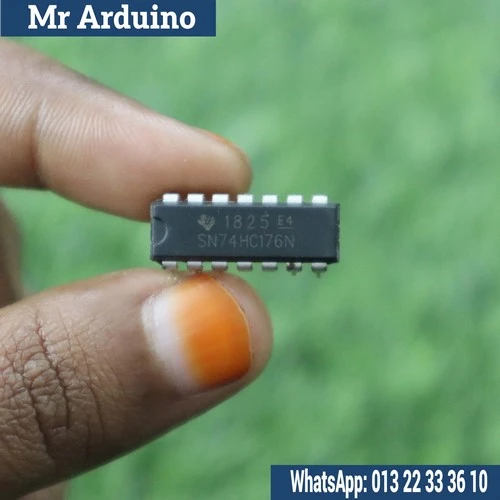

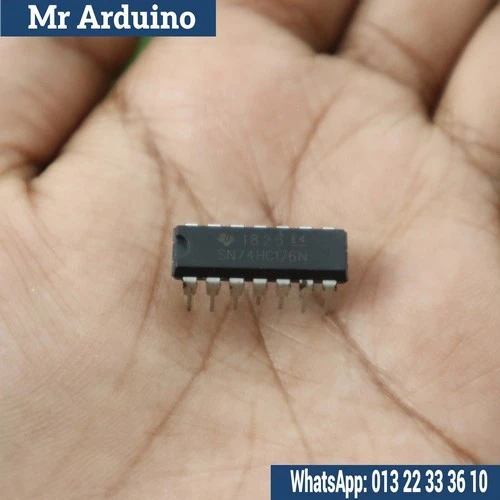

The 7476 is a Dual J-K Flip-Flop integrated circuit from the 7400 series TTL logic family, widely used in digital electronics for storage, toggling, and timing applications. Each flip-flop in the IC is edge-triggered and includes Preset, Clear, Clock, and standard J-K inputs, making it highly flexible for use in a variety of sequential logic circuits.

It is designed for high-speed logic operations, offering reliable and precise control in circuits requiring bistable elements such as counters, registers, and frequency dividers.

How It Works:

The 7476 IC contains two independent J-K flip-flops that respond on the negative edge of the clock pulse. The J and K inputs control the state of the flip-flop:

• When J = 1 and K = 0 → the flip-flop is set

• When J = 0 and K = 1 → the flip-flop is reset

• When J = K = 1 → the output toggles

• When J = K = 0 → no change

Additionally, the Preset and Clear pins allow asynchronous control of the output state, providing direct set or reset functionality regardless of the clock.

Typical Use Cases:

• Counters and dividers: Binary counters, ripple counters, and frequency dividers

• Data storage and memory: Holding logic states in registers or memory arrays

• State machines: Core element in finite state machine designs

• Toggle switches: Converting momentary button presses into toggled outputs

• Debouncing circuits: Combined with additional logic to clean up noisy signals

Limitations:

• Operates at TTL logic levels (typically 5V) — not suitable for direct 3.3V or lower voltage logic without level shifting

• Inputs must be properly managed — floating inputs may cause unpredictable behavior

• Requires timing considerations — setup and hold times must be respected to avoid logic errors

• Not ideal for very high-speed or low-power systems compared to CMOS equivalents
