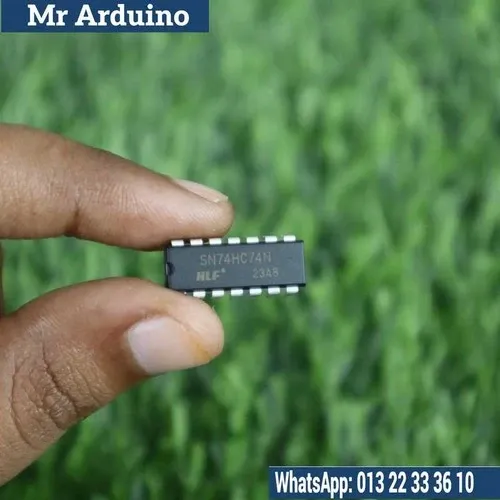

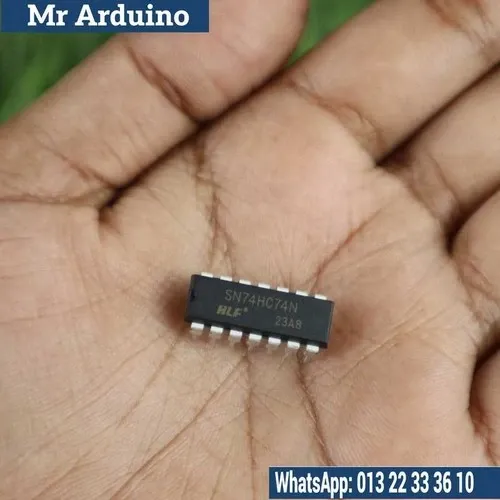

7474 Dual D-Type Flip-Flop with Set and Reset

The 7474 Dual D-Type Flip-Flop is a reliable digital component designed for data storage and synchronization in electronic circuits. With two independent D-type flip-flops, each featuring set and reset inputs, this versatile device is ideal for applications requiring data storage, state control, and timing operations.

Key Features:

Dual Configuration: Contains two D-type flip-flops, allowing for simultaneous data storage and processing in a compact package.
Set and Reset Inputs: Each flip-flop features asynchronous set and reset inputs, providing flexibility in controlling the output states.
Edge-Triggered Operation: Captures input data on the rising edge of the clock signal, ensuring accurate timing and synchronization.
High-Speed Performance: Supports clock frequencies up to 10 MHz, suitable for a wide range of applications.
TTL Compatible: Designed for compatibility with standard TTL logic levels, facilitating easy integration into digital systems.

Benefits: The 7474 Flip-Flop is an essential building block for various digital applications, including state machines, counters, and memory storage. Its ease of use and robust performance make it a popular choice among engineers and hobbyists alike.

Target Audience: Electronics engineers, students, educators, and hobbyists involved in digital circuit design and development.

Specifications

Type: Dual D-Type Flip-Flop
Number of Flip-Flops: 2
Input Levels: TTL compatible
Supply Voltage: Typically 4.75V to 5.25V
Maximum Clock Frequency: Up to 10 MHz
Propagation Delay: Approximately 15 ns (varies with conditions)
Operating Temperature Range: -40°C to +85°C
Package Types: Available in DIP-14, SOIC-14, and other configurations
