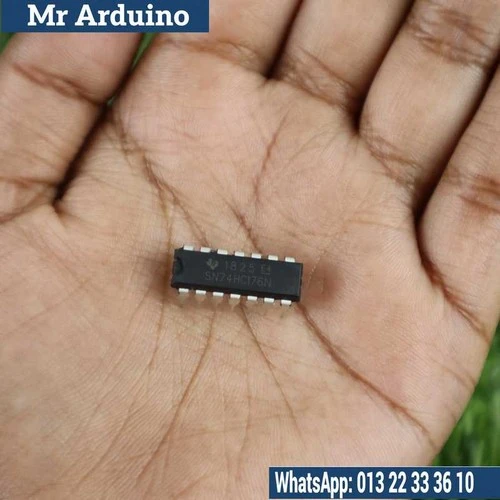

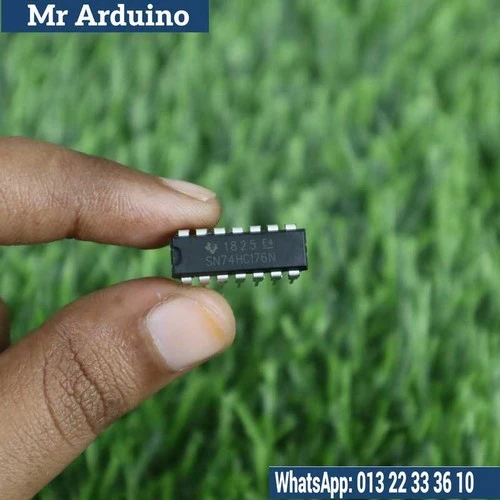

74176 Quad D-Type Flip-Flop with Clear

Enhance your digital circuits with the 74176 Quad D-Type Flip-Flop with Clear, a versatile component designed for reliable data storage and manipulation. This quad flip-flop offers four independent D-type flip-flops with clear functionality, making it ideal for applications requiring synchronized data handling and control.

Key Features:

Quad Configuration: Contains four D-type flip-flops, allowing for multiple data storage operations within a single package.
Clear Functionality: Each flip-flop includes a clear input that asynchronously resets the output to low, providing enhanced control over data states.
Edge-Triggered Operation: Captures the input data on the rising edge of the clock signal, ensuring precise timing and synchronization.
High-Speed Performance: Capable of operating at clock frequencies up to 10 MHz, making it suitable for a wide range of applications.
Standard Logic Levels: Compatible with TTL (Transistor-Transistor Logic) levels for seamless integration into digital systems.

Benefits: The 74176 Flip-Flop is an essential building block for state machines, data storage, and control applications. Its ease of use and reliable operation make it a popular choice among engineers and hobbyists alike.

Target Audience: Electronics engineers, students, educators, and hobbyists involved in digital circuit design and development.

Specifications

Type: Quad D-Type Flip-Flop
Number of Flip-Flops: 4
Input Levels: TTL compatible
Supply Voltage: Typically 4.75V to 5.25V
Maximum Clock Frequency: Up to 10 MHz
Propagation Delay: Approximately 20 ns (varies with conditions)
Operating Temperature Range: -40°C to +85°C
Package Types: Available in DIP-16, SOIC-16, and other configurations
