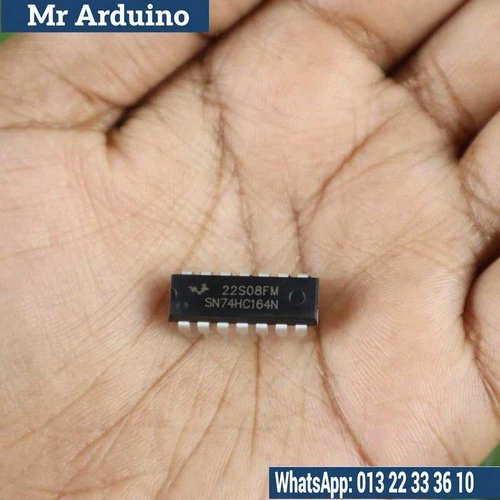

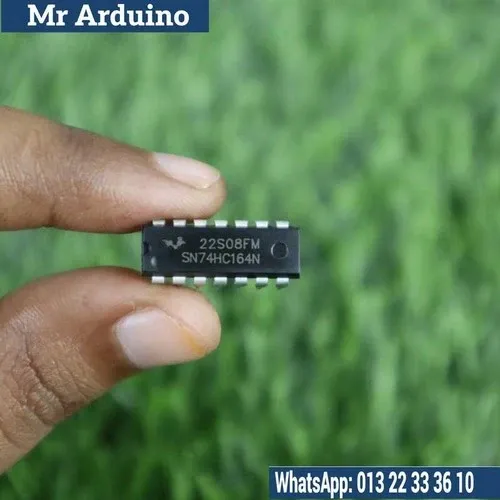

74164 8-bit Serial-in Parallel-out Shift Register

Expand your digital project capabilities with the 74164 8-bit Serial-in Parallel-out Shift Register. This essential component allows for efficient data storage and transfer, making it an excellent choice for interfacing with microcontrollers and managing multiple outputs in your electronic designs.

Key Features:

8-Bit Storage Capacity: Supports 8 bits of data, ideal for applications requiring parallel output from serial input.
Serial Input, Parallel Output: Facilitates data input in a serial format while providing simultaneous parallel output, enhancing data handling efficiency.
High-Speed Operation: Capable of operating at clock frequencies up to 5 MHz, ensuring fast data shifting for real-time applications.
Asynchronous Clear: Features a clear input that allows for resetting the output state, providing greater control over data output.
Easy Integration: Compatible with TTL logic levels, making it straightforward to incorporate into existing designs.

Benefits: The 74164 Shift Register is perfect for applications such as LED control, data transmission, and expanding microcontroller output capabilities. Its user-friendly design and reliable performance make it a valuable tool for both beginners and experienced engineers.

Target Audience: Electronics engineers, students, educators, and hobbyists engaged in digital circuit design and development.

Specifications

Type: 8-bit Serial-in Parallel-out Shift Register
Number of Bits: 8
Supply Voltage: Typically 4.75V to 5.25V
Input Levels: TTL compatible
Maximum Clock Frequency: Up to 5 MHz
Propagation Delay: Approximately 20 ns (varies with conditions)
Operating Temperature Range: -40°C to +85°C
Package Types: Available in DIP-16, SOIC-16, and other configurations
