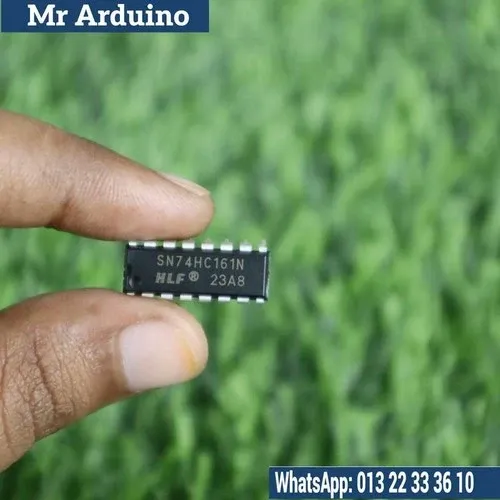

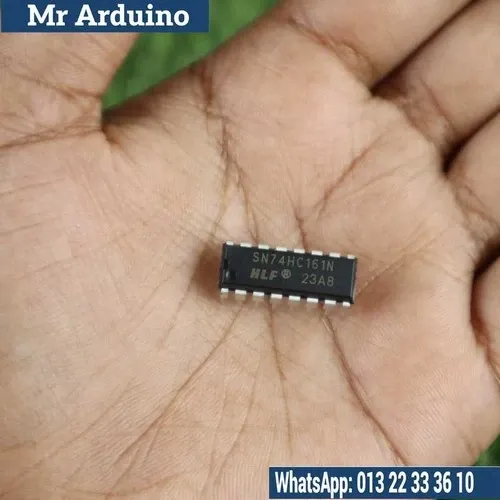

74161 Synchronous 4-Bit Binary Counter

The 74161 Synchronous 4-Bit Binary Counter is a versatile digital component designed for counting applications in electronic circuits. With its synchronous operation, this counter provides reliable and accurate counting capabilities, making it ideal for various applications including frequency division, event counting, and digital timer circuits.

Key Features:

4-Bit Binary Counting: Capable of counting from 0 to 15, providing a full range of binary counting in a compact design.
Synchronous Operation: All flip-flops are triggered simultaneously by a common clock signal, ensuring predictable and stable counting behavior.
Asynchronous Clear: Includes a clear input to reset the counter to zero, enabling easy control over the counting sequence.
Parallel Load Capability: Allows for parallel loading of data, facilitating quick changes in the count state.
Fast Clock Frequency: Operates at clock frequencies up to 20 MHz, suitable for high-speed applications.

Benefits: The 74161 counter is an essential building block for digital systems, making it ideal for applications such as timers, frequency counters, and digital clocks. Its ease of integration and reliable performance make it a favorite among engineers and hobbyists.

Target Audience: Electronics engineers, students, educators, and hobbyists involved in digital circuit design and development.

Specifications

Type: Synchronous 4-Bit Binary Counter
Counting Range: 0 to 15 (4 bits)
Supply Voltage: Typically 4.75V to 5.25V
Input Levels: TTL compatible
Maximum Clock Frequency: Up to 20 MHz
Propagation Delay: Approximately 15 ns (varies with conditions)
Operating Temperature Range: -40°C to +85°C
Package Types: Available in DIP-16, SOIC-16, and other configurations
