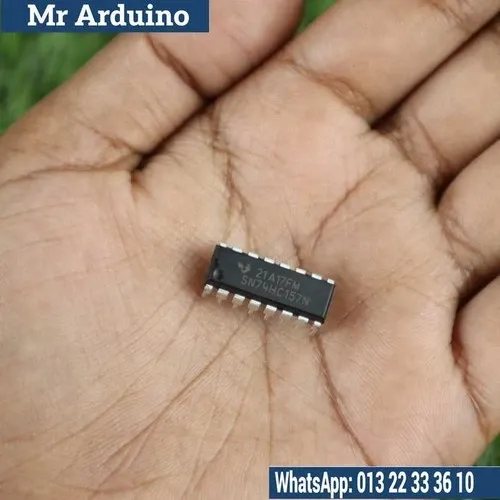

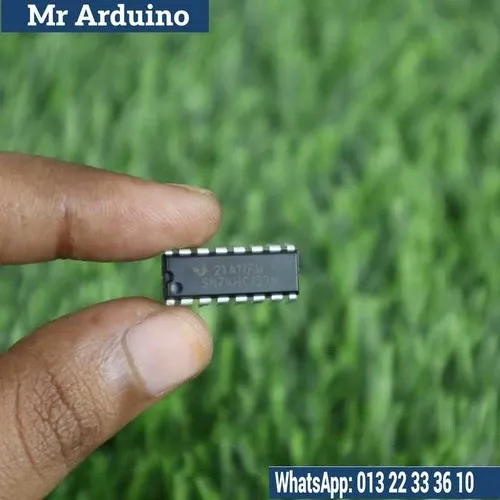

74157 Quad 2-Input Multiplexer

The 74157 Quad 2-Input Multiplexer is a versatile digital component designed to facilitate data selection in electronic circuits. With four independent 2-input multiplexers in a single package, this device is ideal for applications that require efficient data routing, including data selectors, function generators, and arithmetic circuits.

Key Features:

Quad Configuration: Contains four separate 2-input multiplexers, allowing for multiple data selection operations within a single IC.
High-Speed Operation: Supports fast switching times, making it suitable for high-frequency applications.
TTL Compatible: Designed to operate with standard TTL logic levels for seamless integration into digital systems.
Common Select Lines: Uses common select lines for each multiplexer, simplifying control logic and reducing complexity.
Ease of Use: Simple pin configuration and straightforward operation make it ideal for both beginners and experienced designers.

Benefits: The 74157 is perfect for applications that require dynamic data routing, such as signal switching, data multiplexing, and control systems. Its compact design and reliable performance make it a valuable addition to any digital circuit toolkit.

Target Audience: Electronics engineers, students, educators, and hobbyists engaged in digital circuit design and development.

Specifications

Type: Quad 2-Input Multiplexer
Number of Multiplexers: 4
Input Levels: TTL compatible
Supply Voltage: Typically 4.75V to 5.25V
Maximum Propagation Delay: Approximately 15 ns (varies with conditions)
Operating Temperature Range: -40°C to +85°C
Package Types: Available in DIP-16, SOIC-16, and other configurations
