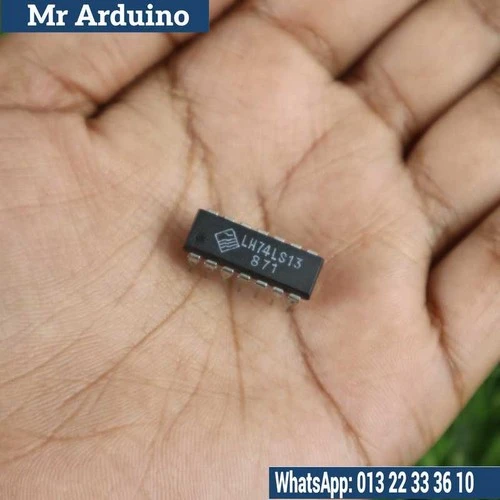

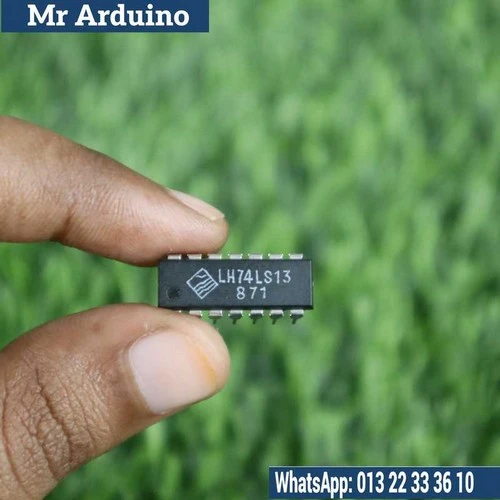

7413 4-Input NAND Gate Schmitt Trigger

0 Orders 0 Wish listed

৳25

Qty

Total price:

৳25

Overview
Reviews

Detail Description

The 7413 is a versatile 4-input NAND gate Schmitt Trigger designed for digital signal processing. This component combines the functionality of a NAND gate with the hysteresis of a Schmitt Trigger, making it ideal for applications requiring noise immunity and fast switching. Its robust design ensures reliable performance in a variety of electronic circuits, from consumer electronics to industrial applications.

Key Features

4-Input Configuration: Allows for multiple input combinations, enhancing flexibility in circuit design.
Schmitt Trigger Action: Provides clean output transitions and improved noise immunity, making it ideal for signal conditioning.
Wide Supply Voltage Range: Operates from a supply voltage of 3V to 15V, compatible with various digital systems.
Fast Switching Speed: Capable of high-speed operation, suitable for applications needing quick response times.
Low Power Consumption: Efficient design minimizes power usage, contributing to energy savings in portable devices.

Specifications

Logic Family: TTL (Transistor-Transistor Logic)
Number of Inputs: 4
Output Type: Push-Pull
Supply Voltage (V_CC): 3V to 15V
Input Voltage High (V_IH): Minimum 2.0V (at V_CC = 5V)
Input Voltage Low (V_IL): Maximum 0.8V (at V_CC = 5V)
Output Voltage High (V_OH): Minimum V_CC - 0.2V
Output Voltage Low (V_OL): Maximum 0.4V
Propagation Delay: Typically around 10 ns (varies with supply voltage)
Temperature Range: -40°C to +85°C
