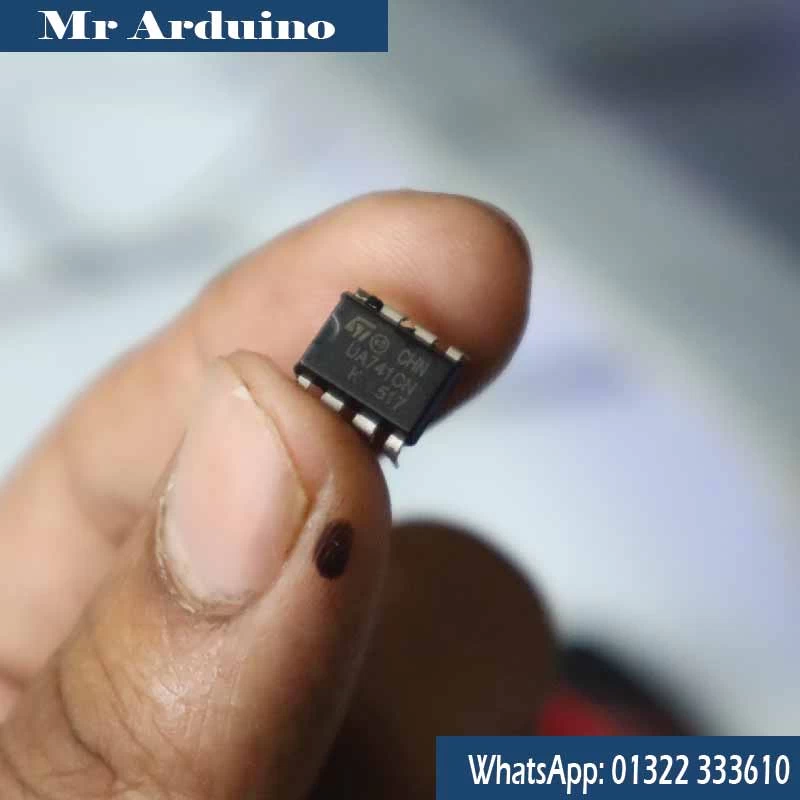

The 741 operational amplifier (op-amp) is a widely recognized component in analog electronics, known for its versatility and foundational role in various applications. Introduced in the late 1960s, it has been a staple in educational settings and numerous electronic designs. This article delves into the specifications, pin configuration, internal workings, common applications, and limitations of the 741 op-amp.

Specifications

The 741 op-amp is characterized by several key specifications:

1. Supply Voltage: Operates typically between ±10V to ±18V.
2. Input Voltage Range: Approximately ±15V.
3. Output Voltage Range: Up to ±14V.
4. Input Resistance: Around 2 MΩ.
5. Output Resistance: Approximately 75Ω.
6. Voltage Gain: Typically 200,000.
7. Unity Gain Bandwidth: 1 MHz.
8. Slew Rate: 0.5 V/µs.

These specifications make the 741 suitable for a range of general-purpose applications, though they may not meet the demands of high-frequency or high-precision tasks.

Pin Configuration

The 741 op-amp is housed in an 8-pin dual in-line package (DIP), with each pin serving a specific function:

1. Offset Null: Used for offset voltage adjustment.
2. Inverting Input (-): Receives the input signal that is 180 degrees out of phase with the output.
3. Non-Inverting Input (+): Receives the input signal that is in phase with the output.
4. V- (Negative Power Supply): Connects to the negative voltage supply.
5. Offset Null: Another pin for offset voltage adjustment.
6. Output: Delivers the amplified signal.
7. V+ (Positive Power Supply): Connects to the positive voltage supply.
8. No Connection (NC): Not internally connected.

The offset null pins (1 and 5) allow for fine-tuning to eliminate any DC offset at the output, ensuring accurate signal amplification.

Internal Circuitry and Operation

Internally, the 741 op-amp comprises multiple stages:

1. Differential Input Stage: Transistors Q1 and Q2 form the differential pair, receiving inputs at the inverting and non-inverting terminals.
2. Gain Stage: Transistors Q3 to Q7 amplify the differential signal.
3. Level Shifting Stage: Transistor Q16, along with associated resistors, shifts the voltage level to ensure proper operation of the output stage.
4. Output Stage: Transistors Q14, Q17, and Q20 provide the final amplified output, capable of driving external loads.

Current mirrors, composed of transistor pairs like Q8-Q9 and Q12-Q13, are employed to maintain constant current through various stages, enhancing performance and stability.

Common Applications

The 741 op-amp's versatility allows it to be utilized in various configurations:

1. Inverting Amplifier: Provides an output that is 180 degrees out of phase with the input, with a gain determined by external resistors.
2. Non-Inverting Amplifier: Delivers an output in phase with the input, offering high input impedance.
3. Voltage Follower (Buffer): Outputs a signal identical to the input, used for impedance matching.
4. Summing Amplifier: Combines multiple input signals into a single output.
5. Differential Amplifier: Amplifies the difference between two input signals.
6. Integrator and Differentiator: Performs mathematical integration and differentiation of input signals, respectively.

These configurations are foundational in analog signal processing, filtering, and mathematical operations.

Limitations

Despite its widespread use, the 741 op-amp has certain limitations:

1. Bandwidth and Slew Rate: With a unity gain bandwidth of 1 MHz and a slew rate of 0.5 V/µs, it may not be suitable for high-speed applications.
2. Input Bias Current: Higher input bias currents can introduce errors when interfacing with high-impedance sources.
3. Offset Voltage: The inherent offset voltage may necessitate external calibration for precision applications.
4. Power Consumption: Modern op-amps often offer lower power consumption, making the 741 less ideal for energy-sensitive designs.

For applications demanding higher speed, precision, or efficiency, modern op-amps with improved specifications are recommended.
