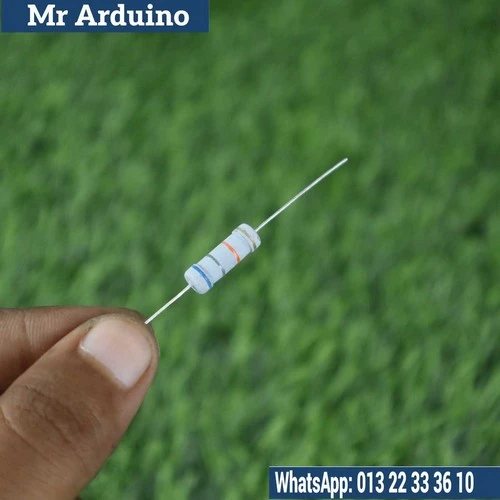

The 68K Ohm 2 Watt Resistor is a high-value, high-power resistor designed for applications that require efficient current limiting and power dissipation. With a resistance of 68K Ohms (68,000 Ohms) and a power rating of 2 Watts, this resistor is ideal for use in circuits that deal with higher voltage levels, such as voltage dividers, signal conditioning, and high-impedance circuits. It is suitable for circuits that need precise current control and can handle moderate to high-power dissipation without overheating.

How it Works: The 68K Ohm 2 Watt Resistor functions by restricting the flow of electrical current, creating a voltage drop according to Ohm’s Law (V = I * R). The 68K resistance ensures that very little current flows through the circuit, making it ideal for high-impedance applications where low current is required. The 2-watt power rating allows this resistor to safely dissipate up to 2 watts of electrical power as heat, making it suitable for more demanding power applications compared to lower-rated resistors.

Specifications:

• Resistance: 68K Ohms (68,000 Ohms)

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depends on the variant)

• Size: Standard 2-watt size for higher-power applications

Applications:

• Voltage Dividers: Frequently used in voltage divider circuits to step down voltages while ensuring safe power dissipation in higher voltage circuits.

• Signal Conditioning: Commonly used in audio, analog, and RF circuits for filtering, amplifying, or conditioning signals with moderate to high power handling.

• High-Impedance Circuits: Ideal for high-impedance applications, such as sensor circuits or in systems that require precise current regulation.

• Current Limiting: Can be used in series with components like LEDs, transistors, or other sensitive devices to limit current and prevent damage from excess power.

• Pull-up/Pull-down Resistors: Used in digital circuits as pull-up or pull-down resistors where high resistance values are needed for setting logical states.

Limitations:

• Power Rating: This resistor is rated for 2 watts of power dissipation. Exceeding this rating can cause overheating, damage to the resistor, or failure of the component.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 68K Ohms, which could affect precision in circuits that require exact values.

The 68K Ohm 2 Watt Resistor is perfect for high-impedance circuits, voltage dividers, signal conditioning, and current limiting in moderate to high-power applications.
