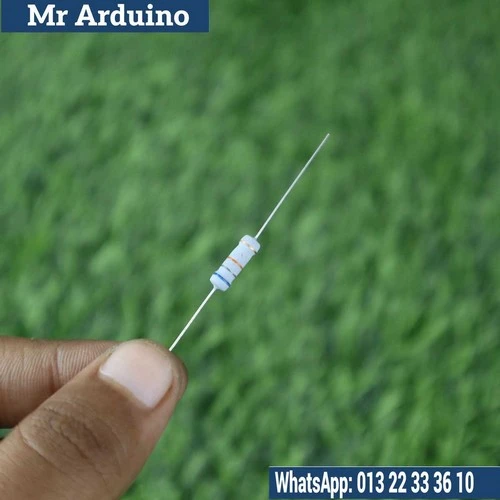

The 68K Ohm 1 Watt Resistor is a high-impedance, high-power resistor designed for use in circuits that require moderate power dissipation and precise current control. With a resistance of 68K Ohms (68,000 Ohms) and a power rating of 1 Watt, this resistor is ideal for applications that involve high voltage and low current, such as voltage dividers, signal conditioning, and sensor circuits.

How it Works: The 68K Ohm 1 Watt Resistor works by introducing resistance into the circuit, limiting the current flow and causing a voltage drop according to Ohm's Law (V = I * R). The 68K resistance value ensures that only a small current passes through the circuit, which is ideal for high-impedance applications. The 1-watt power rating allows it to safely dissipate up to 1 watt of electrical power as heat without overheating, making it suitable for moderate power circuits.

Specifications:

• Resistance: 68K Ohms (68,000 Ohms)

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size suitable for moderate power applications

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to step down higher voltages to desired lower levels while maintaining safe power dissipation.

• Signal Conditioning: Frequently used in analog circuits for filtering, amplifying, or conditioning signals in both audio and RF applications.

• High-Impedance Circuits: Ideal for high-impedance applications where current needs to be restricted and controlled, such as in sensor circuits or audio systems.

• Current Limiting: Can be used in series with other components to limit the current and prevent damage from excessive power flow.

• Pull-up/Pull-down Resistors: Often used in digital circuits as pull-up or pull-down resistors, where high resistance is required to set logical states.

Limitations:

• Power Rating: This resistor is rated for 1 watt of power dissipation. Exceeding this power rating could result in overheating and failure of the resistor.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 68K Ohms, which could impact precision in some applications that require exact values.

The 68K Ohm 1 Watt Resistor is perfect for high-impedance circuits, voltage dividers, signal conditioning, and current limiting applications that require reliable performance with moderate power dissipation.
