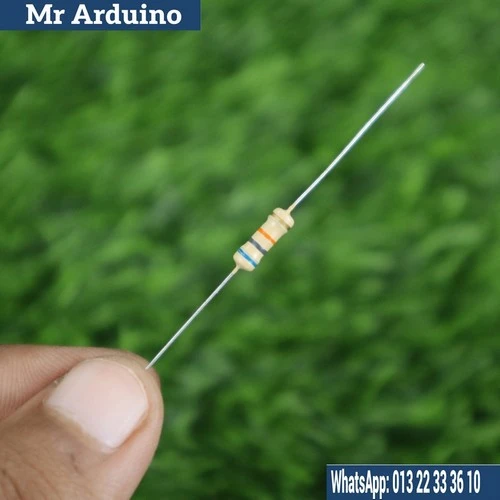

The 68K Ohm 0.5 Watt Resistor is a high-quality passive component designed for precise current limiting and voltage division in electronic circuits. With a resistance value of 68,000 ohms and a power rating of 0.5 watts, this resistor is ideal for applications that require stable performance and reliability.

Constructed from durable materials, this resistor ensures low thermal noise and excellent temperature stability, making it suitable for a wide range of electronic projects, from audio equipment to microcontroller circuits. Its compact design allows for easy integration into circuit boards, making it a go-to choice for both professionals and hobbyists.

Working Principles

The 68K Ohm 0.5 Watt Resistor operates based on the principles of electrical resistance and Ohm’s Law. Here’s how it functions:

1. Resistive Element: The resistor is made from a resistive material, typically carbon film or metal film, which determines its resistance value of 68K ohms.

2. Ohm's Law: The resistor's behavior is defined by Ohm’s Law (V = IR), where:

   • V is the voltage across the resistor,
   • I is the current flowing through it,
   • R is the resistance (68,000 ohms in this case).

3. Power Rating: With a power rating of 0.5 watts, this resistor can safely dissipate heat generated by the current passing through it. Exceeding this rating can lead to overheating and potential failure, so it’s essential to consider the maximum voltage and current in your circuit.

4. Voltage Division: The 68K ohm resistor is commonly used in voltage divider circuits, allowing users to set specific voltage levels for components, ensuring they operate within their required parameters.

5. Current Limiting: This resistor can also limit current in circuits, protecting sensitive components like LEDs and integrated circuits from excessive current that could lead to damage.

With its reliable performance and essential functions in electronic circuits, the 68K Ohm 0.5 Watt Resistor is a fundamental component for any electronics enthusiast or professional.
