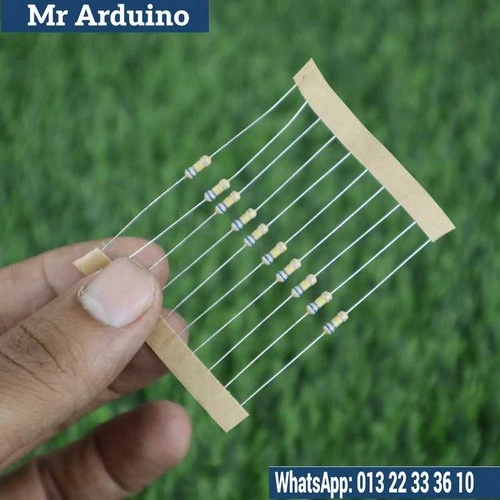

The 680K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 680,000 ohms (680K ohms) and a power rating of 0.25 watts (quarter-watt). This resistor is typically used in low-power electronic circuits where controlling the current flow or dividing voltages is essential. It is ideal for applications requiring high resistance to limit current, voltage division, and signal conditioning.

With its quarter-watt power rating, this resistor is suitable for use in circuits where low power dissipation is required, making it a common choice in DIY projects, hobbyist electronics, and prototyping.

Key Features:

• Resistance Value: 680K ohms, a high resistance value suitable for current limiting, voltage dividing, and signal filtering applications in low-power circuits.
• Power Rating: 0.25W (quarter-watt), ideal for circuits that operate under low power to minimize heat generation.
• Tolerance: Typically ±5% tolerance, though precision versions with ±1% tolerance are available for applications requiring higher accuracy.
• Compact Size: The quarter-watt form factor is perfect for breadboards, PCBs, and other space-constrained designs.
• Material: Constructed from carbon film or metal oxide, offering durability and stable performance in low-power applications.

How It Works: The 680K Ohm Resistor Quarter Watt 0.25W operates by limiting the current that flows through a circuit according to Ohm’s Law (V = IR), where V is the voltage, I is the current, and R is the resistance. The higher the resistance, the less current can flow through the circuit. This is crucial when designing circuits that require high resistance to control voltage or prevent excessive current flow.

For instance, if 5V is applied across the 680K ohm resistor, the current flowing through it can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{680,000Ω} \approx 0.00000735 \, A = 7.35 \, \mu A$$

This means that with a 5V supply, the current flowing through the 680K ohm resistor will be approximately 7.35 microamperes (µA), which is a very small current.

The power dissipated by the resistor can be calculated using the formula:

$$P = I^2 \times R$$

Substituting the current value into the equation:

$$P = (0.00000735 \, A)^2 \times 680,000Ω \approx 0.00025W = 0.25W$$

Thus, the resistor will dissipate 0.25 watts of power, which is within its rated 0.25W power handling capacity.

Applications:

• Voltage Dividers: Ideal for creating specific voltage levels in voltage divider circuits. Commonly used for sensor circuits, analog-to-digital conversion (ADC), or reference voltage generation in microcontroller applications.
• Signal Conditioning: Often used for signal filtering and attenuation, particularly in audio circuits, analog signal processing, and RF (radio frequency) circuits, where high resistance is required to reduce noise or unwanted signals.
• Current Limiting: Can be used in current-limiting applications, such as protecting LEDs or other sensitive components from excessive current.
• Sensing Circuits: Utilized in sensor circuits for creating high-resistance pathways that help condition signals or provide voltage measurement.
• RC Circuits: Commonly used in Resistor-Capacitor (RC) circuits for timing, filtering, or signal shaping applications, especially when a higher resistance value is needed to determine the time constant of the circuit.
• Impedance Matching: Employed in impedance matching in audio systems or other signal transfer applications to ensure optimal signal transmission with minimal reflection or signal loss.
• Power Supply Regulation: Used in voltage regulation circuits to help stabilize the voltage supplied to sensitive components, ensuring that power fluctuations do not affect the performance of the system.

Limitations:

• Low Power Rating: With a 0.25W power rating, this resistor is designed for low-power circuits only. For higher-power applications that involve higher voltage or current, you should use a higher-power resistor (e.g., 0.5W or 1W).
• Current Handling: This resistor is ideal for circuits with low current (e.g., microamperes or milliamps). For circuits requiring higher current, a lower resistance value and a higher power rating may be necessary to prevent overheating or power loss.
• Tolerance: With a ±5% tolerance, the actual resistance value may vary slightly from the specified value. For applications that require a more precise resistance, consider using a precision resistor with a ±1% tolerance or tighter.

The 680K Ohm Resistor Quarter Watt 0.25W is an essential component for low-power circuits where high resistance is needed. Its small size, low power dissipation, and stable performance make it ideal for a wide range of applications such as voltage dividers, signal conditioning, and current limiting. Whether you're working on hobby projects, DIY electronics, or engineering prototypes, this resistor provides reliable and efficient performance for your circuit designs.
