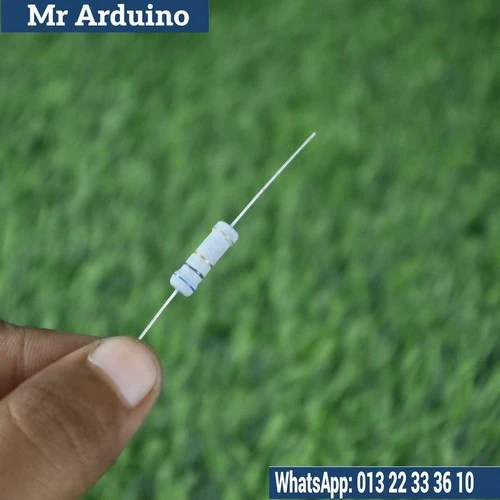

The 6.8 Ohm 2 Watt Resistor is a low-resistance, high-power resistor designed for applications that require efficient current regulation and power dissipation. With a resistance value of 6.8 Ohms and a power rating of 2 Watts, this resistor is perfect for high-current circuits where moderate power dissipation is necessary. It is commonly used in power supply circuits, motor control systems, and audio amplification circuits, offering both stability and protection for other components in the system.

How it Works: The 6.8 Ohm 2 Watt Resistor operates by resisting the flow of electrical current, resulting in a voltage drop across the resistor based on Ohm's Law (V = I * R). The 6.8 Ohm resistance value ensures that higher currents can pass through the circuit, making it suitable for medium to high-current applications. The 2-watt power rating ensures that the resistor can safely dissipate up to 2 watts of electrical power as heat, preventing overheating and ensuring reliable performance.

Specifications:

• Resistance: 6.8 Ohms

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for moderate to high-power applications

Applications:

• Current Limiting: Used in series with LEDs, motors, transistors, or other components to limit current and prevent damage from excessive current flow.

• Power Supply Circuits: Frequently used in power supply systems to regulate the current flow and prevent overload conditions in sensitive components.

• Voltage Drop: Ideal for circuits that require a specific voltage drop to control current flow without excessive power dissipation.

• Audio Circuits: Employed in audio amplification systems to control current and ensure proper power dissipation while maintaining sound quality.

• Motor Control Systems: Perfect for motor drive circuits where current needs to be regulated to prevent overheating and damage to the motor or associated components.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Exceeding this limit may cause the resistor to overheat, potentially damaging the resistor or surrounding components.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 6.8 Ohms, which may affect precision in circuits that require exact values.

The 6.8 Ohm 2 Watt Resistor is ideal for current limiting, power supply regulation, and medium to high-power applications, ensuring efficient power dissipation and circuit protection.
