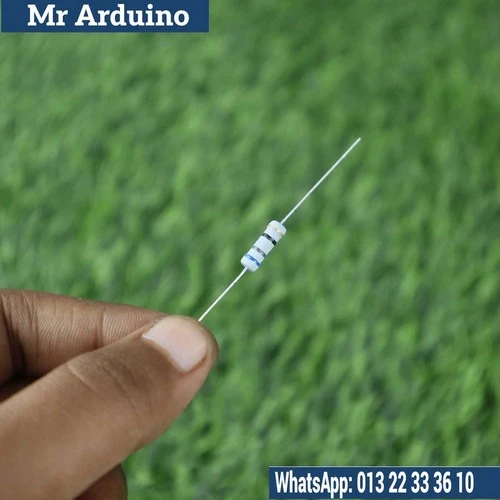

The 68 Ohm 1 Watt Resistor is a robust and efficient electronic component designed for moderate power applications where controlling current flow is crucial. With a resistance value of 68 Ohms and a power rating of 1 Watt, this resistor is ideal for circuits that require current limitation and power dissipation without exceeding the component’s thermal limits. It is commonly used in power supply systems, LED circuits, and signal conditioning applications.

How it Works: The 68 Ohm 1 Watt Resistor functions by limiting the flow of electrical current, causing a voltage drop across the resistor as per Ohm's Law (V = I * R). The 68 Ohm resistance ensures that the current is adequately controlled within the circuit. The 1-watt power rating indicates that the resistor can safely dissipate up to 1 watt of power as heat, making it suitable for circuits that operate at moderate power levels.

Specifications:

• Resistance: 68 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size for general-purpose applications

Applications:

• Current Limiting: Commonly used in series with components like LEDs to limit the current flow and prevent damage due to excessive current.

• Voltage Divider Circuits: Suitable for voltage divider applications to step down voltages to desired levels without dissipating too much power.

• Power Supplies: Used in power supply circuits to regulate the current and prevent overcurrent conditions.

• Signal Conditioning: Employed in signal conditioning circuits for filtering or adjusting signal strengths in analog or audio systems.

• Audio Circuits: Frequently used in audio amplification circuits to adjust current and manage power dissipation.

Limitations:

• Power Rating: The 1-watt power rating should not be exceeded. Exceeding this limit could cause the resistor to overheat and potentially fail.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 68 Ohms, which could affect the accuracy of precision circuits.

The 68 Ohm 1 Watt Resistor is a reliable solution for current limiting, voltage divider, and signal conditioning applications in moderate-power circuits.
