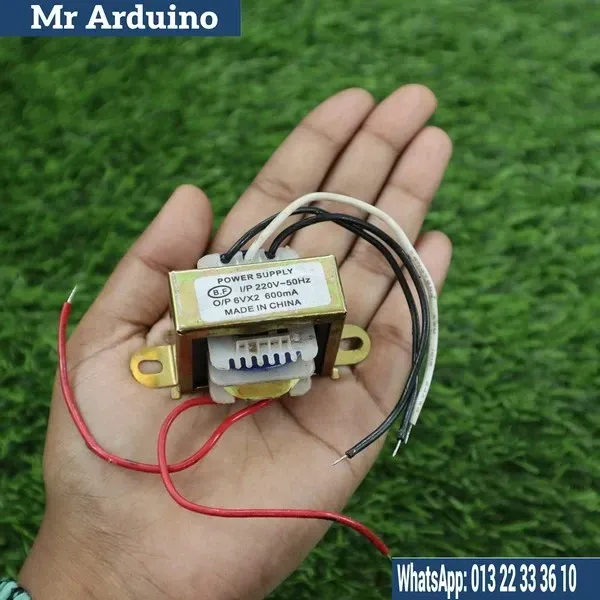

The 6-0-6 Transformer (600mA) is a low-voltage power transformer designed to provide electrical isolation and conversion of voltage levels in various electronic applications. The 6-0-6 designation refers to the secondary voltage ratings of the transformer, meaning it provides 6V AC on each side of the center tap (0V). This configuration is commonly used in applications where dual polarity (positive and negative) DC output is required, or for powering small electronic circuits, audio systems, or devices that need a 6V AC input.

The 600mA current rating indicates the maximum amount of current that the transformer can safely supply on each of its secondary windings. The 6-0-6 Transformer is typically used in low-power applications, including signal processing circuits, audio amplifiers, power supplies, and charging circuits.

Key Features:

• Primary Voltage: Typically designed for standard AC mains input, such as 110V or 220V, depending on the region.

• Secondary Voltage: 6V AC on each side of the center tap (0V), providing a total of 12V AC between the two secondary windings.

• Current Rating: 600mA (0.6A) on each side of the secondary winding, indicating the maximum current output.

• Center-Tapped Design: The center tap (0V) enables applications where a split power supply is required (i.e., dual polarity circuits, +6V and -6V outputs).

• Compact Design: Small and lightweight, making it ideal for use in desktop electronics, audio applications, and small power supplies.

• Durability: Made with quality materials that provide safe and reliable performance in residential, industrial, and DIY electronic projects.

How it Works:

A transformer works on the principle of electromagnetic induction. The primary winding of the transformer is connected to the AC power source (e.g., 110V or 220V mains). When current flows through the primary winding, it generates a magnetic field that induces a voltage in the secondary winding.

In the case of the 6-0-6 Transformer:

• The transformer steps down the voltage from the primary side (e.g., 110V AC) to 6V AC on each side of the center tap.

• The center tap (0V) provides a reference point, allowing for a split voltage output of +6V AC and -6V AC, or alternatively, it can be used to create a dual-polarity power supply (positive and negative outputs).

This type of transformer is especially useful in circuits that require a dual-polarity power supply, such as op-amps, audio equipment, or signal processing systems.

Limitations:

• Current Limitation: The 600mA current rating indicates that the transformer can safely supply up to 600mA (0.6A) on each of the secondary windings. Exceeding this current could result in overheating and potential damage to the transformer.

• AC Output: This transformer provides an AC output, so if you require DC power, you'll need to use a rectifier and filter circuit to convert the AC output to DC.

• Size and Application: The transformer is designed for small to medium applications. For higher current applications, a larger transformer with a higher current rating would be necessary.

Typical Applications:

• Audio Amplifiers: Used in audio circuits that require dual-polarity supplies, such as in stereo amplifiers or audio signal processing.

• Power Supplies: Often used in low-voltage power supplies for small electronic circuits or devices requiring 6V AC input.

• Signal Processing Circuits: Provides the required AC voltage for various signal processing applications, such as mixers, equalizers, or other analog electronics.

• Dual Polarity Circuits: Perfect for circuits that require both +6V and -6V, commonly used in op-amp circuits, analog signal processing, or audio equipment.

• Battery Chargers: Used for charging circuits that need a regulated 6V AC input.

The 6-0-6 Transformer 600mA is a reliable, versatile solution for low-voltage applications, providing a dual-output AC voltage suitable for a range of electronics projects and equipment.
