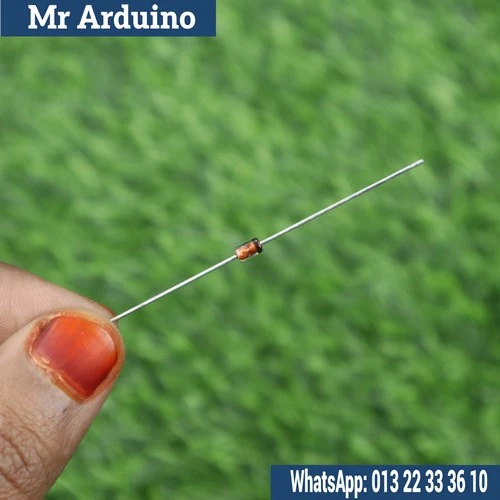

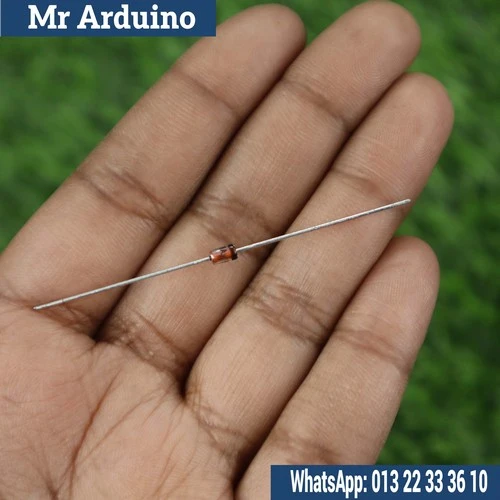

The 5.6V 0.5 Watt Zener Diode is a high-quality semiconductor component designed for use in voltage regulation and voltage clamping applications. This Zener diode provides stable and precise voltage control at 5.6 volts, making it ideal for protecting circuits from overvoltage conditions and ensuring that the voltage level remains within safe limits. With a power rating of 0.5 watts, this diode is suitable for low to medium power applications, offering reliable performance in a compact package.

The Zener diode operates by allowing current to flow normally in the forward direction, but when the reverse voltage exceeds the Zener breakdown voltage (5.6V in this case), the diode starts to conduct in reverse, thereby clamping the voltage to a safe level. This characteristic makes it an essential component for voltage regulation, surge protection, and signal conditioning.

How It Works:
When a reverse bias is applied to the Zener diode, it behaves like a regular diode up until the Zener voltage (5.6V) is reached. At this point, the diode begins to conduct in reverse, effectively clamping the voltage to 5.6V. This ensures that any excess voltage above 5.6V is safely diverted, protecting sensitive components in the circuit from voltage spikes and surges.

Specifications:

• Zener Voltage: 5.6V (the voltage at which the diode starts conducting in reverse)

• Power Rating: 0.5 Watt (suitable for low to medium power applications)

• Forward Voltage: Typically 0.7V at 20mA (when conducting in forward bias)

• Max Reverse Current: Typically 10µA at 5.6V (when in breakdown region)

• Package Type: Typically DO-41 or similar for easy installation in circuits

• Operating Temperature Range: -55°C to +150°C (ideal for various environments)

• Reverse Leakage Current: Low leakage current for efficient voltage regulation

• Mounting Type: Through-hole or surface-mount options, depending on the variant

• Compliance: RoHS compliant, non-toxic, and safe for use in a variety of applications

Features:

• Voltage Clamping: Provides 5.6V regulation to protect sensitive components from voltage spikes or overvoltage conditions.

• Reliable Protection: Ensures stable voltage regulation, preventing damage caused by overvoltage in circuits.

• Low Power Consumption: With a 0.5-watt power rating, it is ideal for low power applications.

• Compact Design: Small, easy-to-install component suitable for a wide range of electronic circuits.

• Wide Temperature Range: Operates effectively in a wide range of temperatures, from -55°C to +150°C, making it suitable for various environmental conditions.

• Durable: Long-lasting and able to withstand the rigors of everyday electronic applications.

• Versatile Application: Used for voltage regulation, overvoltage protection, and clamping circuits.

Applications:

• Voltage Regulation: Used to stabilize the voltage across components in sensitive electronic circuits, such as power supplies and regulators.

• Overvoltage Protection: Protects components from surge voltages in automotive electronics, communication devices, and power systems.

• Surge Suppression: Ideal for signal conditioning circuits, preventing damage from transient voltage surges.

• Power Supply Circuits: Commonly used in power supply circuits to maintain a constant voltage, preventing fluctuations that could damage sensitive electronics.

• DIY Electronics Projects: Ideal for hobbyists and electronics enthusiasts working on custom projects where voltage stability is important.

• Signal Conditioning: Helps with clipping or shaping signals in precision electronics and oscillator circuits.

Limitations:

• Limited Power Handling: The 0.5-watt rating limits its use to low to medium power circuits; for higher power applications, a higher wattage Zener diode would be required.

• Reverse Current Limitations: While it is highly effective for voltage clamping, excessive reverse current can damage the diode, so it should be used within its rated limits.

• Not for High-Frequency Applications: Zener diodes may not be suitable for applications requiring high-frequency operation, as their reverse breakdown characteristics can introduce noise or distortion.
