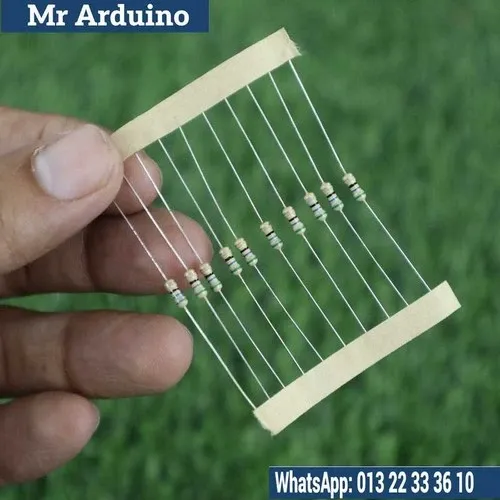

The 56 Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 56 ohms and a power rating of 0.25 watts (quarter-watt). It is widely used in low-power electronic circuits where precise current limiting, voltage division, or signal conditioning is necessary. This resistor is designed for applications that do not require significant power dissipation, making it suitable for hobby projects, DIY electronics, and low-power devices.

With its compact quarter-watt form factor, it is ideal for breadboards, PCBs, and circuits that need reliable performance without overheating. It is a versatile component, often used in voltage dividers, current-limiting applications, and audio circuits.

Key Features:

• Resistance Value: 56 ohms, ideal for controlling current or voltage in circuits with moderate resistance needs.
• Power Rating: 0.25W (quarter-watt), designed for low-power applications where minimal heat generation is required.
• Tolerance: Typically comes with ±5% tolerance, but precision versions with ±1% tolerance are also available for higher accuracy.
• Compact Size: The quarter-watt size makes it perfect for use in space-constrained designs such as PCBs and breadboards.
• Material: Made from carbon film or metal oxide, offering durability and long-term stability.

How It Works: The 56 Ohm Resistor Quarter Watt 0.25W works based on Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 56 ohm resistance determines how much current will flow through the circuit when a specific voltage is applied.

For instance, when 5V is applied across the 56 ohm resistor, the current can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{56Ω} \approx 0.089 \, A = 89 \, mA$$

This means, with a 5V supply, the current flowing through the 56 ohm resistor will be approximately 89 milliamps (mA).

The 0.25W power rating ensures that the resistor can safely dissipate up to 0.25 watts of power. The power dissipated in the resistor can be calculated using the formula:

$$P = I^2 \times R$$

Using the current calculated earlier:

$$P = (0.089 \, A)^2 \times 56Ω \approx 0.25W$$

This confirms that the 0.25W power rating is suitable for this application.

Applications:

• Current Limiting: Frequently used in LED circuits to limit the current passing through the LED, preventing damage from excessive current.
• Voltage Dividers: Often employed in voltage divider circuits to produce desired voltage levels for components like sensors, microcontrollers, or ADC (Analog-to-Digital Converters).
• Signal Conditioning: Useful in signal processing circuits to attenuate or filter signals to the appropriate level, particularly in audio circuits or sensor interfaces.
• RC Circuits: Can be used in Resistor-Capacitor (RC) circuits for time constant control, smoothing signals, or filtering noise.
• Impedance Matching: Used in audio systems to match impedances, ensuring optimal signal transfer between components.
• Power Supply Circuits: Employed to regulate voltages in low-power supplies and prevent spikes or drops in voltage that could damage sensitive components.
• Speaker Circuits: Used to limit current to speakers, ensuring they receive an optimal amount of current and preventing damage from overcurrent.

Limitations:

• Low Power Rating: The 0.25W power rating restricts the resistor to low-power circuits. For circuits that require higher power, a higher-rated resistor (e.g., 0.5W, 1W) should be used.
• Current Handling: This resistor is suitable for low-to-moderate current applications. For high-current circuits, a lower resistance and higher power rating would be necessary to prevent excessive heating.
• Tolerance: The ±5% tolerance means there is a slight variation in the actual resistance value. If you need higher precision, opt for a precision resistor with a ±1% tolerance for more accurate results.

The 56 Ohm Resistor Quarter Watt 0.25W is a versatile component for use in low-power circuits, current-limiting applications, voltage dividers, and signal conditioning. Its compact size, affordable price, and reliable performance make it a perfect choice for both hobbyists and professionals. Whether you are building simple LED circuits or more advanced signal processing systems, this resistor provides the necessary performance without consuming excess power.
