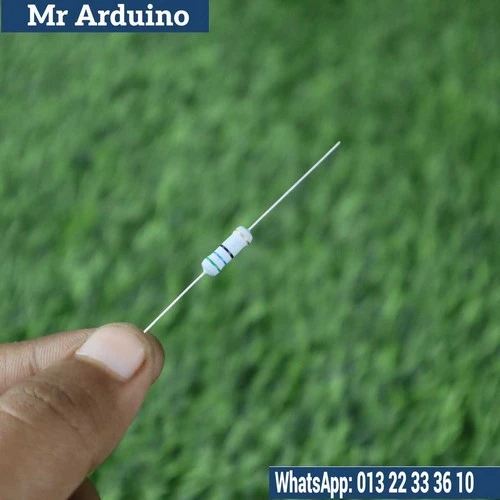

The 56 Ohm 1 Watt Resistor is a versatile, high-performance component designed for current regulation and power dissipation in various electronic circuits. With a resistance of 56 Ohms and a power rating of 1 Watt, this resistor is perfect for applications that require moderate current control and power handling. It is commonly used in LED circuits, power supplies, and voltage dividers, offering a safe and reliable solution for circuit protection and stability.

How it Works: The 56 Ohm 1 Watt Resistor works by opposing the flow of electrical current, causing a voltage drop according to Ohm’s Law (V = I * R). The 56 Ohm resistance value ensures that current flow is regulated, protecting sensitive components from excess current. With a 1-watt power rating, the resistor can safely dissipate up to 1 watt of electrical energy as heat, making it suitable for moderate power applications without overheating.

Specifications:

• Resistance: 56 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size for moderate-power applications

Applications:

• Current Limiting: Used in series with LEDs, diodes, or transistors to limit current and prevent damage from excessive current.

• Voltage Divider Circuits: Often used in voltage dividers to reduce higher voltages to safer, usable levels.

• Power Supply Circuits: Ideal for power supply applications to control the flow of current and maintain voltage stability.

• Signal Conditioning: Suitable for analog circuits to filter, adjust, or shape signals.

• Audio Circuits: Used in audio amplification or impedance-matching circuits to manage power dissipation and current flow.

Limitations:

• Power Rating: This resistor is rated for 1 watt of power dissipation. Exceeding this rating can result in overheating and potential damage to the resistor.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 56 Ohms, which could affect precision in circuits requiring exact resistance values.

The 56 Ohm 1 Watt Resistor is an ideal choice for current limiting, voltage dividers, power supply regulation, and signal conditioning in moderate-power applications.
