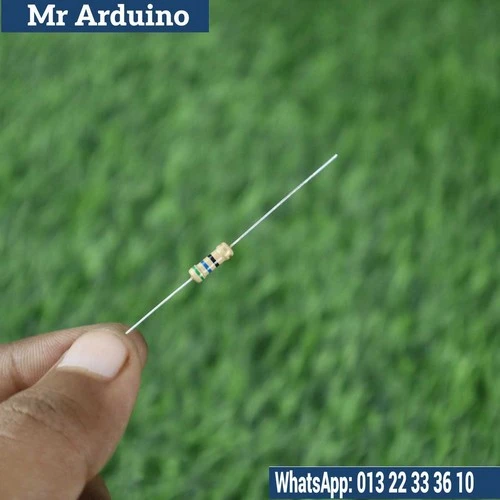

The 56 Ohm 0.5 Watt Resistor is a fixed-value resistor designed to provide a resistance of 56 ohms with a power rating of 0.5 watts (½ watt). It is a commonly used resistor in electronic circuits to limit the current flow and set the proper voltage levels in a variety of applications. With its moderate power handling capacity, it is suitable for low-power circuits where current regulation or voltage division is required.

This resistor is made from materials like carbon film, metal oxide, or ceramic, which ensure reliable performance over a wide range of operating conditions. It is typically used in analog circuits, LED circuits, signal processing, and voltage divider networks. The 56 ohm resistance value is commonly chosen for specific applications where current needs to be controlled or specific voltage drops across components need to be achieved.

Key Features:

• Resistance Value: 56 Ohms (Ω) to limit or regulate the current in the circuit.

• Power Rating: 0.5 Watts (½ Watt), meaning it can safely dissipate 0.5 watts of electrical energy without overheating.

• Tolerance: Typically ±5% (meaning the actual resistance could vary by up to 5% from the stated value).

• Type: Usually a through-hole resistor, with axial leads for easy soldering into electronic circuits.

• Material: Made from carbon film, metal oxide, or ceramic to provide reliability and durability.

• Operating Voltage: The maximum voltage should be calculated based on the resistor's power rating to avoid damage (as per P = V² / R formula).

• Temperature Range: Generally works within a temperature range of -55°C to +155°C, but this may vary by specific type.

Applications:

1. Current Limiting: The 56 Ohm resistor is commonly used in LED circuits to limit the current flowing through the LED, preventing damage from excessive current.

2. Voltage Dividers: This resistor can be part of a voltage divider circuit, where it works alongside other resistors to create a lower voltage from a higher voltage source, providing the desired voltage for specific components.

3. Signal Conditioning: In signal conditioning circuits, the 56 Ohm resistor can be used for impedance matching, filtering, or controlling the gain of signals.

4. Biasing and Feedback Circuits: The resistor is frequently used in biasing transistors or operational amplifiers (op-amps) and feedback networks to set operating points or control the behavior of the circuit.

5. Audio Circuits: Used in audio amplifiers, filters, and equalizers to set gain levels, provide current limiting, or act as part of an impedance matching network.

6. Power Supply Circuits: In power supply designs, the 56 Ohm resistor can be used to limit current or stabilize voltages across specific components.

7. Voltage Regulation: Often used in voltage regulator circuits to set the appropriate voltage drop across components and stabilize power delivery.

How It Works: The 56 Ohm 0.5 Watt Resistor works based on Ohm's Law, which is the fundamental principle governing resistive circuits. According to Ohm's Law:

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current passing through the resistor.

• R is the resistance of the resistor (in this case, 56 Ohms).

When a current flows through the resistor, a voltage drop is created across it, proportional to the current and the resistance. The power dissipated by the resistor can be calculated using the formula:

$$P = I^2 \times R = \frac{V^2}{R}$$

In this case, the resistor can dissipate 0.5 watts of power without overheating. If the current flowing through the resistor is high or the voltage across it is large, the power dissipation increases, which could lead to overheating or failure if it exceeds the 0.5-watt rating.

To ensure safe operation, it is important to calculate the power dissipation using the appropriate voltage and current values to avoid exceeding the power rating. For example:

• If the resistor is exposed to 5V, the current passing through it will be I = V / R = 5V / 56Ω ≈ 0.089A (approximately 89mA).

• The power dissipated in this case will be P = V × I = 5V × 0.089A = 0.445W, which is under the 0.5W power rating.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits the resistor’s use to low-power applications. If the current or voltage applied exceeds the power rating, the resistor will overheat and could burn out. For higher power requirements, use resistors with higher power ratings (e.g., 1 Watt, 2 Watt resistors).

• Tolerance: The typical ±5% tolerance means that the actual resistance could vary by up to 5% from the stated value, which may not be suitable for high-precision applications. For more accurate resistance values, resistors with tighter tolerances, such as ±1% or ±0.5%, are preferred.

• Voltage Rating: Ensure that the voltage applied across the resistor does not cause it to exceed its power dissipation limits. If you apply high voltages across the resistor, it may exceed its power rating and cause failure.

• Temperature Sensitivity: While it has a wide temperature range, high ambient temperatures combined with high power dissipation may cause performance degradation or failure. Proper heat management is essential in high-power or high-temperature environments.

Conclusion: The 56 Ohm 0.5 Watt Resistor is a widely used electronic component suitable for low-power circuits that require current limiting, voltage division, or signal conditioning. It is commonly found in LED circuits, voltage dividers, biasing circuits, and signal processing applications. With its moderate power rating of 0.5 watts, it is a versatile and reliable component for basic electronic projects and prototype designs.

When using the 56 Ohm resistor, be sure to calculate the expected power dissipation and ensure it remains within the 0.5-watt limit to avoid overheating and failure. This resistor is ideal for projects that don't require high current, making it an excellent choice for everyday electronic applications.
