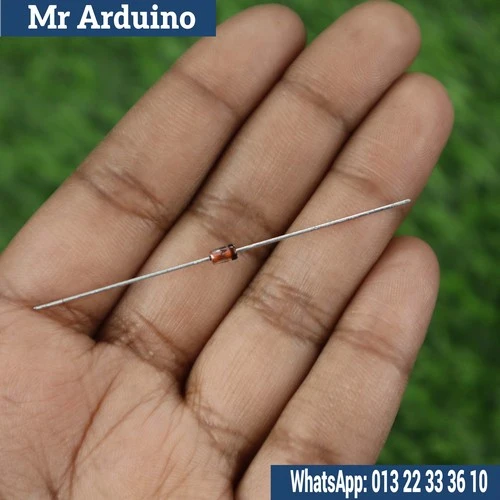

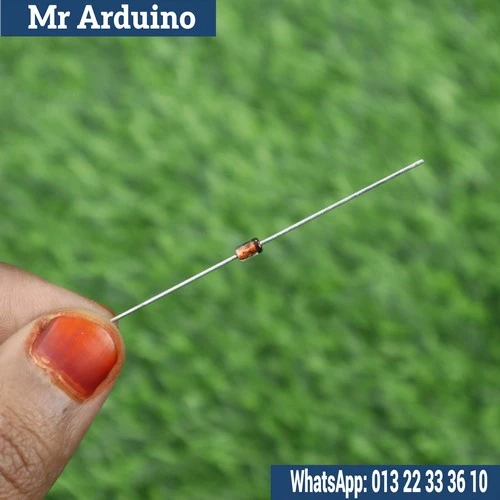

The 5.1V 0.5 Watt Zener Diode is a compact and reliable voltage regulation component used to protect sensitive electronic circuits by maintaining a stable voltage of 5.1 volts. With a power rating of 0.5 watts, this Zener diode is ideal for low to medium power applications and offers excellent performance in voltage clamping, regulation, and overvoltage protection.

Designed for use in DC power supplies, signal processing, and surge protection, the 5.1V Zener Diode conducts in reverse once the voltage exceeds 5.1V, effectively clamping the voltage and protecting downstream components. Its small footprint and ease of use make it a staple in any electronics toolkit.

How It Works:
In forward bias, it behaves like a standard diode. In reverse bias, it blocks current until the voltage reaches 5.1V, at which point it begins to conduct in reverse and clamps the voltage at that level. This makes it a go-to component for protecting circuits from voltage spikes and maintaining steady voltage in power-sensitive designs.

Specifications:

• Zener Voltage (Vz): 5.1V ± 5%

• Power Dissipation: 0.5W (500mW)

• Maximum Zener Current: ~98mA at 5.1V

• Test Current (Izt): ~20mA

• Maximum Reverse Leakage Current: ≤ 5µA at 2V

• Forward Voltage Drop: ≤ 1.1V at 200mA

• Package Type: DO-35 or DO-41 (depending on variant)

• Mounting: Through-hole

• Operating Temperature Range: -55°C to +150°C

• Tolerance: Typically ±5%

• RoHS Compliant: Yes

Features:

• 🔹 Stable 5.1V Regulation – Ideal for maintaining voltage levels in critical components.

• 🔹 Low Power Consumption – Rated at 0.5W, perfect for compact, energy-efficient circuits.

• 🔹 Reliable Protection – Prevents damage from overvoltage in both commercial and DIY applications.

• 🔹 Compact Size – Fits easily into breadboards and PCBs.

• 🔹 High Temperature Tolerance – Operates reliably across extreme conditions.

• 🔹 Cost-Effective – Offers a simple and affordable solution for voltage control and protection.

Applications:

• ✅ Power Supply Regulation – Maintains a stable 5.1V output in linear or switching regulators.

• ✅ Overvoltage Protection – Protects ICs, microcontrollers, and sensors from spikes.

• ✅ Clipping and Clamping Circuits – Used in signal conditioning or limiting applications.

• ✅ DIY & Hobby Electronics – Ideal for Arduino, Raspberry Pi, and robotics projects.

• ✅ Battery-Powered Devices – Helps in voltage reference or power stabilization.

• ✅ Automotive and Industrial Control – Useful for low-voltage signal regulation in embedded systems.
