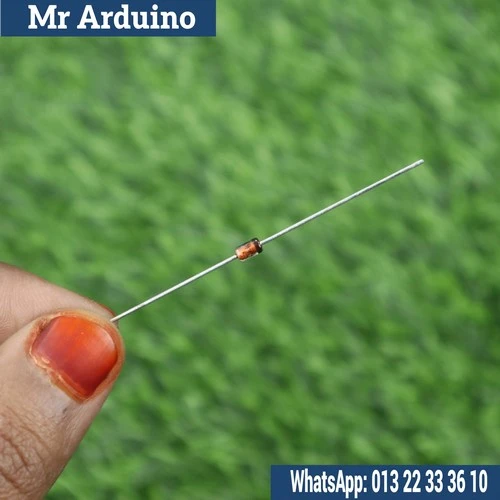

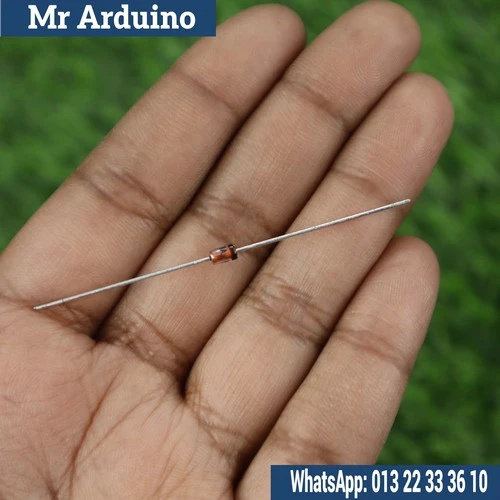

The 5.1V 1 Watt Zener Diode is a precision voltage regulation component designed to maintain a stable 5.1V output in a wide range of electronic and electrical circuits. With a 1-watt power rating, this diode provides greater current handling than standard 0.5W versions, making it suitable for medium-power applications and environments where higher reliability is required.

This Zener diode is a dependable solution for voltage regulation, overvoltage protection, and reference voltage generation. It operates by allowing current to flow in the forward direction like a normal diode but starts conducting in reverse when the voltage across it exceeds 5.1V, thereby clamping the voltage to a safe, stable level.

How It Works:
In reverse bias, the diode remains non-conductive until the Zener breakdown voltage of 5.1V is reached. Once this happens, the diode begins to conduct and maintains a constant 5.1V across itself, protecting sensitive components in the circuit from voltage surges.

Specifications:

• Zener Voltage (Vz): 5.1V ±5%

• Power Rating: 1 Watt (1000mW)

• Max Zener Current (Izm): ~196mA

• Test Current (Izt): ~49mA

• Maximum Reverse Leakage Current (Ir): ≤ 5µA at 2V

• Forward Voltage Drop (Vf): ~1.2V at 200mA

• Package Type: DO-41 (glass or epoxy body)

• Mounting Type: Through-hole

• Operating Temperature Range: -65°C to +200°C

• Storage Temperature Range: -65°C to +200°C

• Polarity: Cathode marked with a band

• RoHS Compliant: Yes

Features:

• 🔹 Precise 5.1V Regulation – Delivers accurate and reliable voltage control.

• 🔹 1-Watt Power Rating – Handles higher current loads than lower-wattage diodes.

• 🔹 Overvoltage Protection – Shields sensitive electronics from damaging voltage spikes.

• 🔹 Thermally Stable – Excellent temperature stability for harsh operating environments.

• 🔹 Compact and Durable – DO-41 package allows for easy integration into PCBs or breadboards.

• 🔹 Long Lifespan – Built to last in both industrial and hobbyist environments.

Applications:

• ✅ Power Supply Circuits – Maintains a steady 5.1V output for logic devices, sensors, and microcontrollers.

• ✅ Reference Voltage Source – Used in analog and digital circuits where a stable reference is required.

• ✅ Surge Protection – Protects components from unexpected voltage fluctuations.

• ✅ Embedded Systems – Common in automotive, industrial, and consumer electronics.

• ✅ DIY Projects & Learning Kits – Ideal for Arduino, robotics, and electronics learners.

• ✅ Signal Conditioning – Shapes or limits voltage levels in communication systems and amplifiers.

Limitations:

• ⚠️ Not Suitable for High-Power Applications – For applications requiring more than 1 watt dissipation, use a higher-rated Zener or add heat sinking.

• ⚠️ Requires Proper Resistor Sizing – To avoid damaging the diode, current-limiting resistors must be correctly calculated.

• ⚠️ Zener Noise – May introduce small amounts of electrical noise in sensitive analog systems; filtering may be needed.
