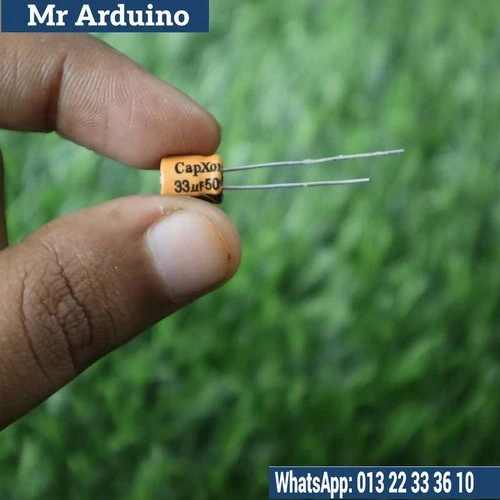

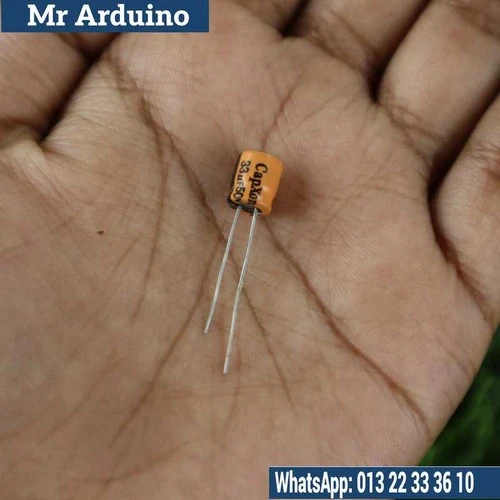

The 50V 33uF Electrolytic Capacitor is a compact and reliable energy storage component designed for electronic circuits that require moderate capacitance and higher voltage capabilities. With a capacitance of 33µF and a rated voltage of 50V, this capacitor is perfect for applications in power supplies, voltage regulation, signal processing, and audio systems, where both moderate capacitance and higher voltage tolerance are essential.

Being an electrolytic capacitor, it uses an electrolyte to provide a high capacitance in a small package. This capacitor is polarized, meaning it must be installed with the correct polarity (positive terminal to the higher voltage side) to ensure proper operation and prevent failure.

Key Features:

• Capacitance Value: 33µF, suitable for applications requiring lower capacitance but higher voltage tolerance.

• Rated Voltage: 50V DC, ideal for use in circuits where the voltage does not exceed 50V, making it suitable for higher voltage systems.

• Polarized Design: Must be installed with the correct polarity to avoid damage. The positive lead must connect to the higher voltage side.

• Compact Size: Despite the high voltage rating, the capacitor has a compact form factor, making it suitable for space-limited designs.

• Reliable Performance: Designed for long-lasting and consistent operation in a wide range of electronic applications.

How It Works: The 50V 33uF Electrolytic Capacitor stores electrical energy between its two electrodes, with the dielectric material separating them. When voltage is applied, the capacitor charges up, storing energy in the form of an electric field. When the circuit requires energy stabilization or buffering, the capacitor discharges its stored energy.

In power supply systems, this capacitor helps smooth out ripple voltage, ensuring that the voltage remains steady and clean. It is also used in filtering applications to eliminate unwanted high-frequency noise and pass the desired signal, improving overall circuit performance.

Applications:

• Power Supply Filtering: Commonly used in DC power supplies to reduce ripple and smooth the DC voltage, providing clean power to other components.

• Voltage Regulation: Helps stabilize voltage levels in DC-DC converters, voltage regulators, and other systems requiring consistent voltage outputs.

• Audio Systems: Used in audio circuits such as amplifiers and filters to block DC voltage while allowing AC signals (audio signals) to pass through, improving sound quality.

• Signal Coupling: Effective in signal processing circuits to block DC components and pass only the desired AC signals.

• Energy Storage: Provides moderate energy storage for buffering or stabilization in circuits that require low to moderate capacitance.

Specifications:

• Capacitance: 33µF (microfarads)

• Rated Voltage: 50V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (check datasheet for exact specifications)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on the variant)

• Lead Spacing: Typically 5mm or 7.5mm (verify datasheet for specific dimensions)

Limitations:

• Polarized: Correct polarity is crucial. Reversing polarity can result in leakage, failure, or rupture of the capacitor.

• Voltage Rating: The maximum rated voltage is 50V. Exceeding this voltage can damage the capacitor or cause it to fail.

• Lifespan: Electrolytic capacitors degrade over time, especially under high voltage and temperature conditions, which may lead to reduced capacitance or increased leakage current.

• Size: While it is compact, this capacitor may still be too large for circuits with very tight space constraints.
